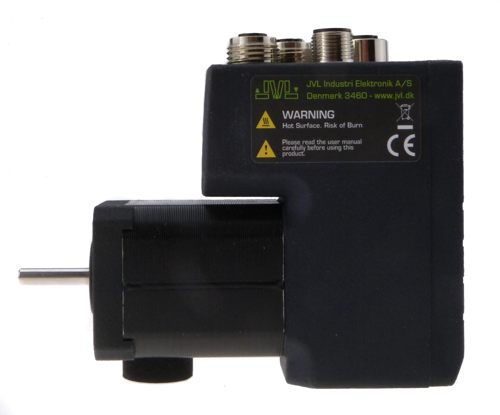

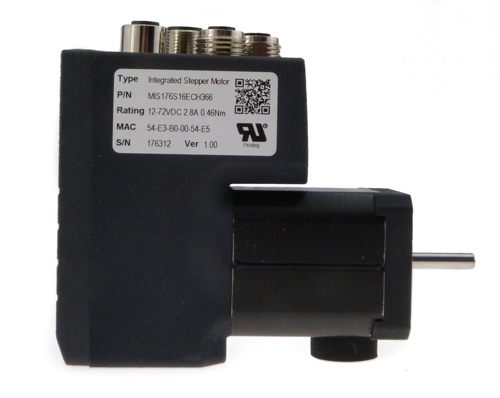

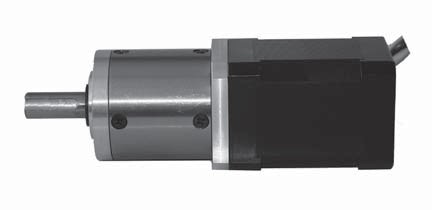

OEM Planetary gear for MIS17x
( OBSOLETE )
|
Features:
|
 |
 |
 |
 |
|
 |
|||||
 |
|||||
Gearbox
| Type 10 |
Type 20 |
|
| Size |
42x42 NEMA17 |
42x42 NEMA17 |
| Torque |
10 Nm |
20 Nm |
| Peak Torque |
30 Nm |
60 Nm |
| Precision |
1° to 1.5° |
1° to 1.5° |
| Gear Ratio |
3.8 to 116 |
4.4 to 106 |
| Efficiency |
73 to 93% |
73 to 93% |

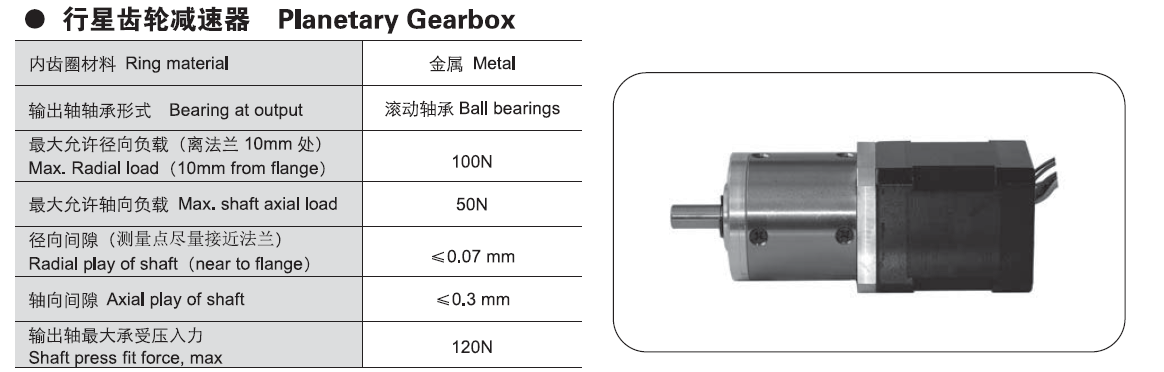

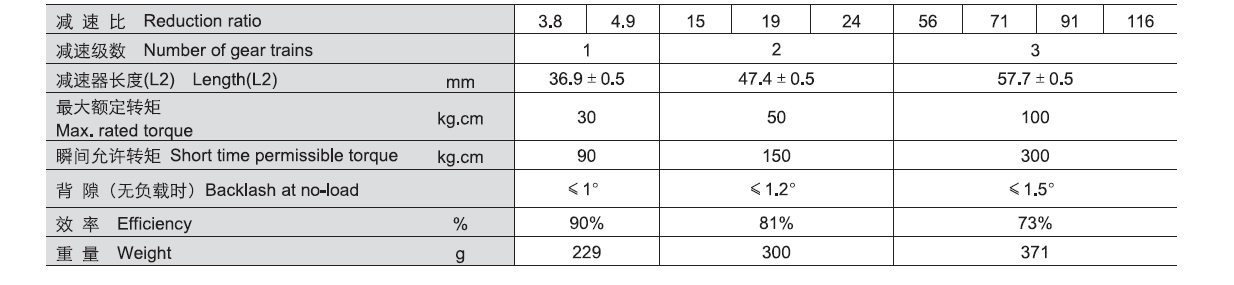

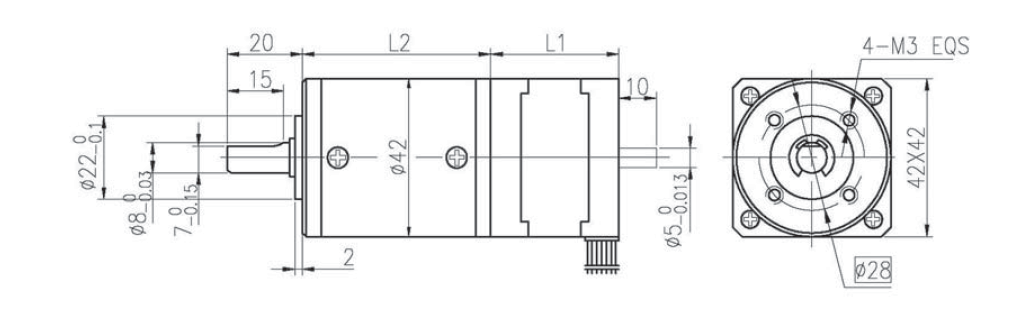

| Type 10 |
|||
   |
|||

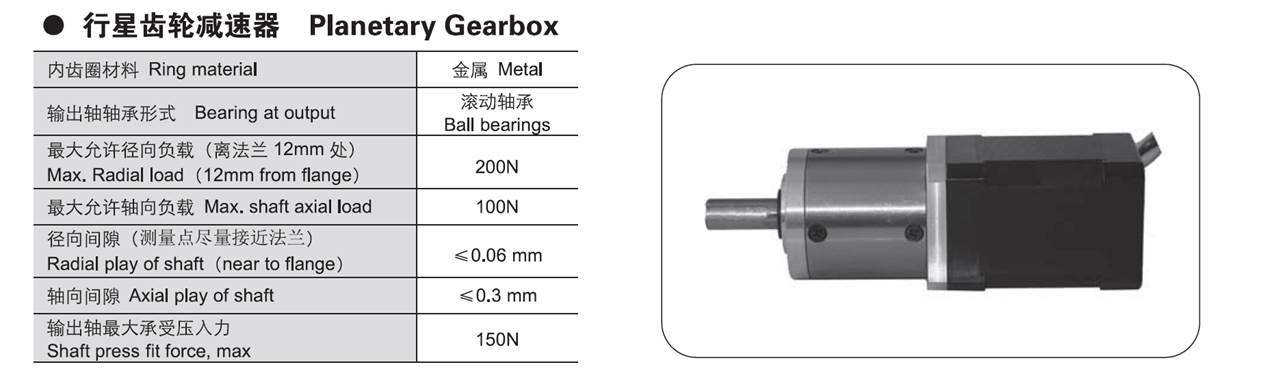

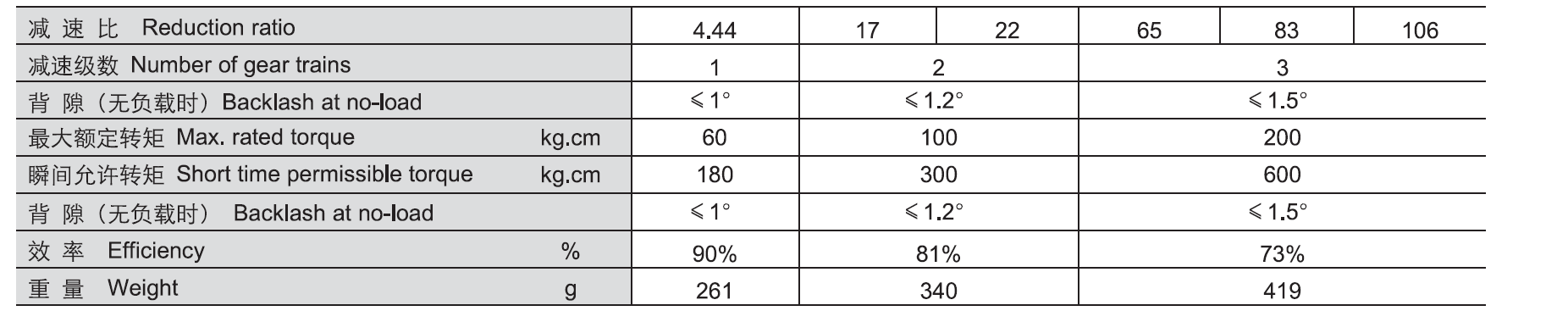

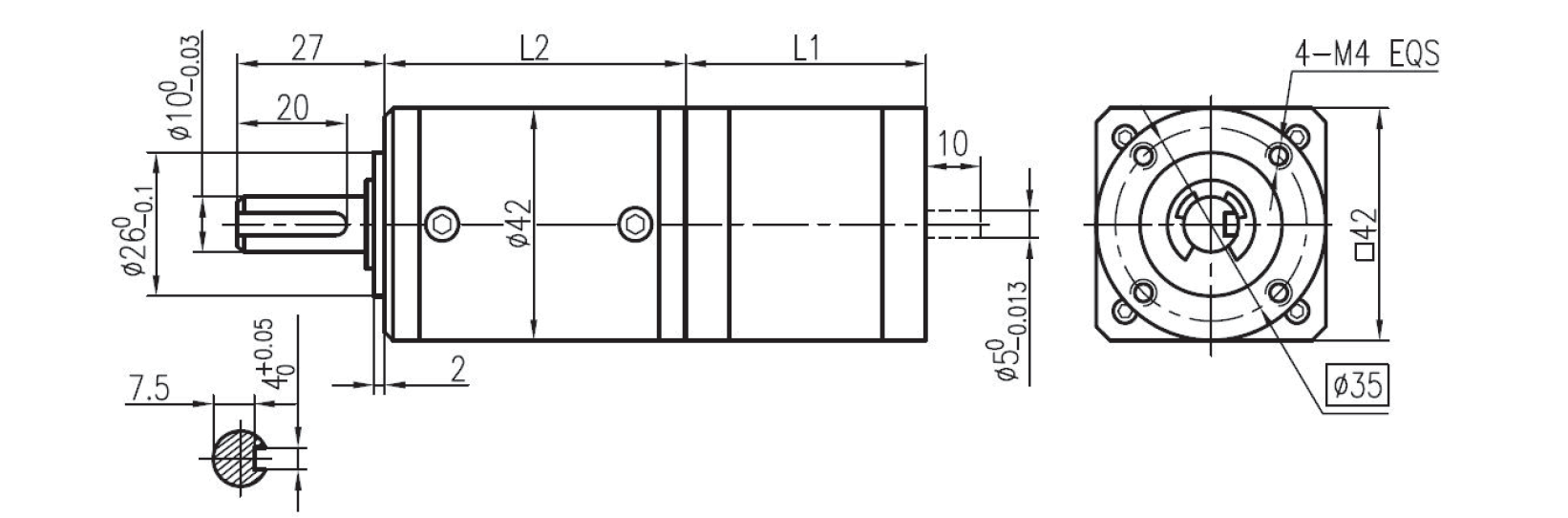

| Type 20 |
|||
   |
|
DETAILED
|
|
|
|
DOWNLOAD
|
