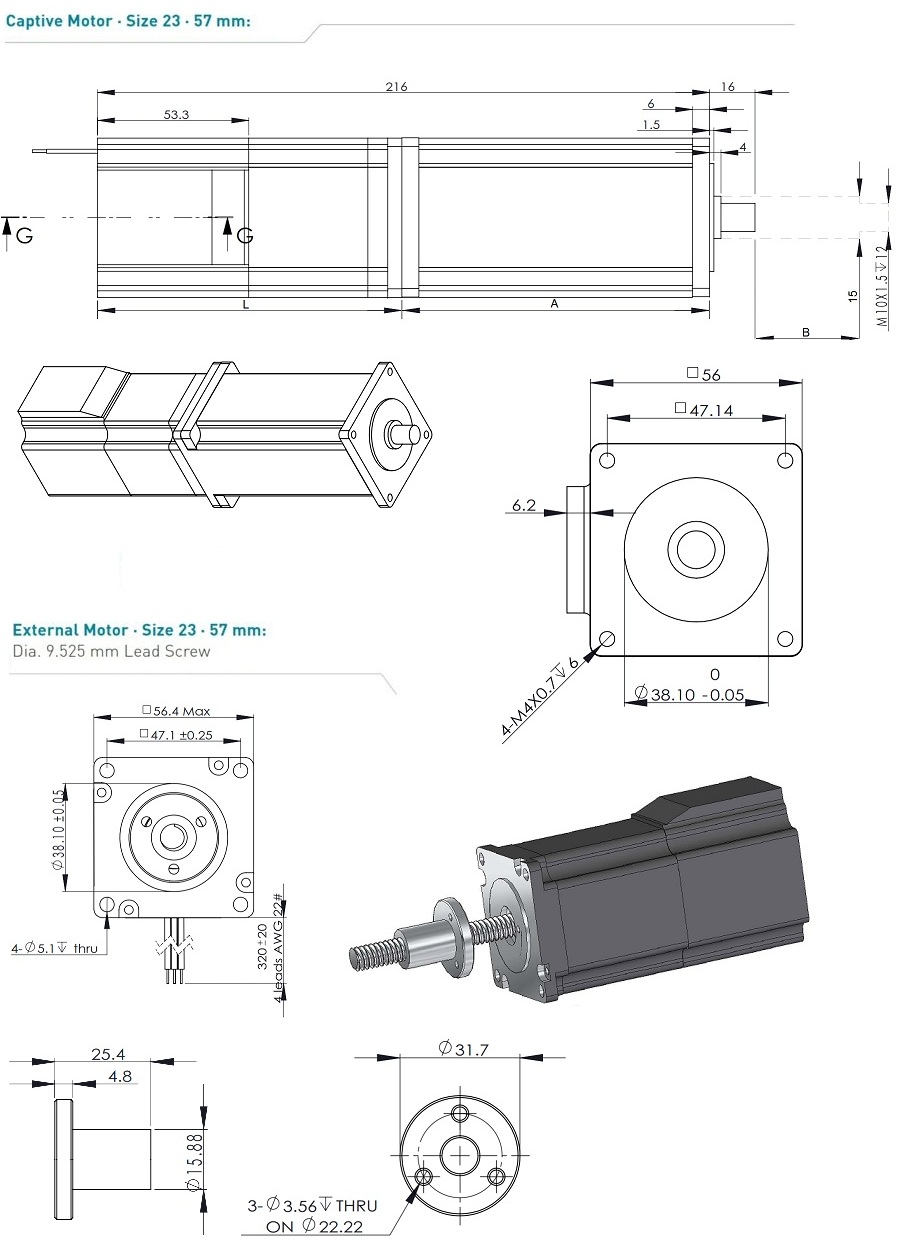

MIL23 Lead screw drawings
| Stroke | Dimension B [mm] (inch) Stroke |
Dimension A [mm] (inch) |
Dimension L [mm] (inch) Single Stack |
Dimension L [mm] (inch) Double Stack |
| A | 12.7 (0.5) |
57.7 (2.271) |
89 (3.503) |
108 (4.251) |
| B |
19.05 (0.75) |
64.05 (2.521) |
89 (3.503) | 108 (4.251) |
| C | 25.4 (1.0) |
70.4 (2.771) |
89 (3.503) | 108 (4.251) |
| D | 31.8 (1.25) |
76.8 (3.023) |
89 (3.503) | 108 (4.251) |
| E | 38.1 (1.5) |
83.1 (3.271) |
89 (3.503) | 108 (4.251) |
| F | 50.8 (2.0) |
95.8 (3.771) |
89 (3.503) | 108 (4.251) |
| G | 63.5 (2.5) |
108.5 (4.271) |
89 (3.503) |
108 (4.251) |
| L | 127 (5.0) |
172 (6.771) |
89 (3.503) | 108 (4.251) |
