New Integrated MIS232 stepper with 2 times higher power

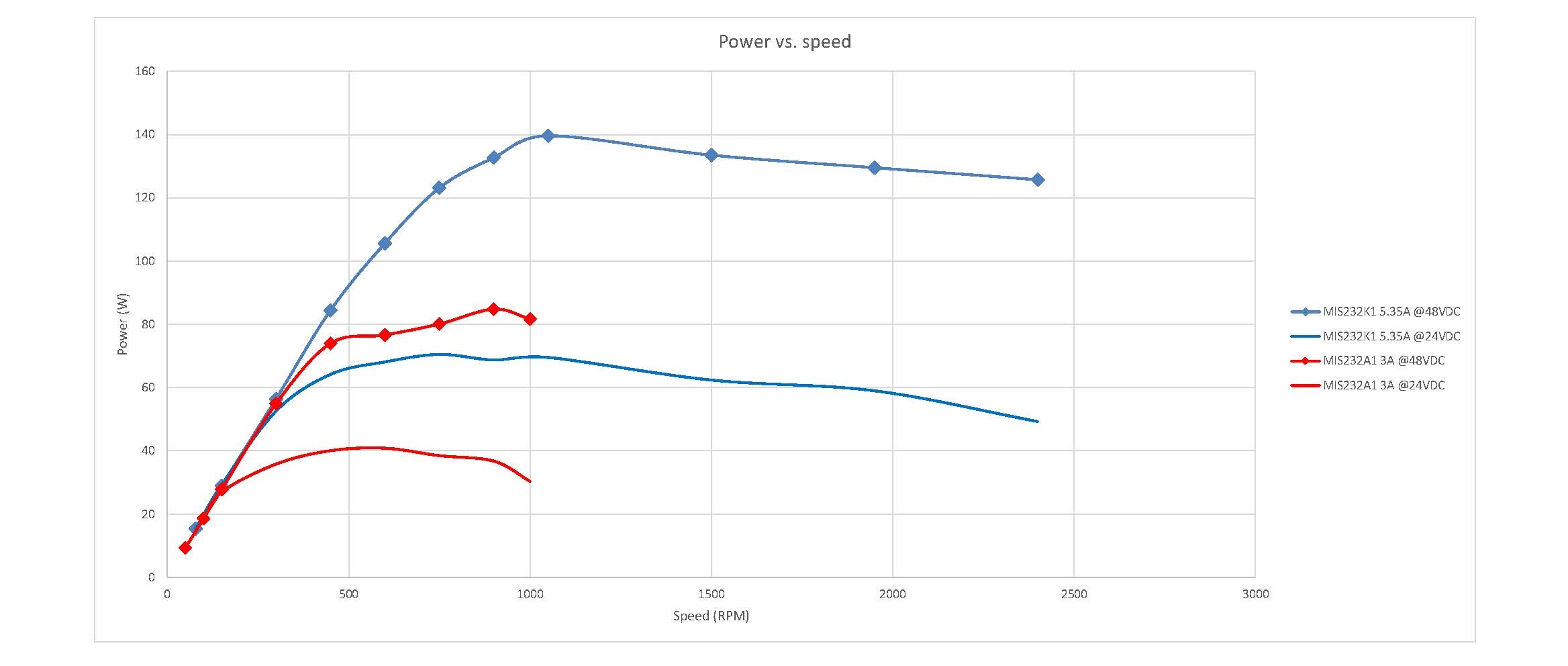

| Power vs. speed |
||
|
JVL have developed new integrated stepper motor with optimized winding and new high current driver for MIS232A1 series. It is optimized for 24VDC supply voltage or high speed and high torque running at 48VDC supply voltage.
Torque and power at high speed is almost doubled and motor is therefore suitable for high speed operation in the range 300-1200 RPM.
New motor is available in MIS232 size and all options available. For OEM project can MIS231 and MIS234 also be selected.
Click the pictures to see a pdf version of the curves. |
 |
|

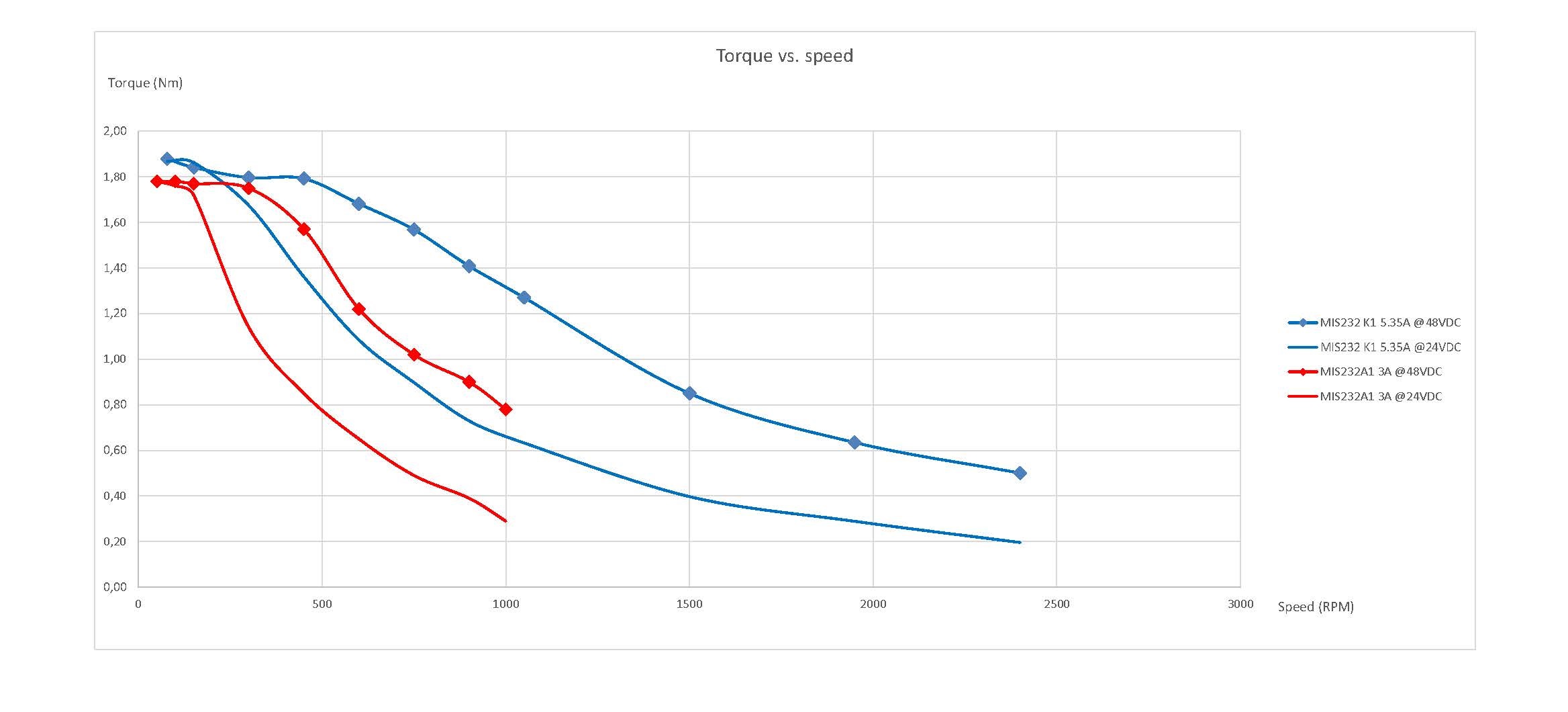

| Torque vs. speed |
||
 |
||
