Cable Accessories for Stepper Motor Controller SMC75 and other Motion Control Products


The following equipment is recommended for use with the Stepper Motor Controller SMC75:

Partnumber Description Connector type
WG0801 Cable 65mm for SMC75 PCB 8 IO M12 8pin Fem with white 10pin JST connector Cable 65mm for SMC75 PCB 8 IO M12 8pin Fem with white 10pin JST connector
WG0802 Cable 65mm for SMC75 PCB CAN bus M12 M5 with white 6pin JST connector Cable 65mm for SMC75 PCB CAN bus M12 M5 with white 6pin JST connector
WG0803 Cable 65mm for SMC75 PCB Power. M12 5pin Male with 3 pin Molex connect Cable 65mm for SMC75 PCB Power. M12 5pin Male with 3 pin Molex connect
WG0804 Cable 65mm for SMC75 PCB RS485. 2pcs M12 used in M3 version Cable 65mm for SMC75 PCB RS485. 2pcs M12 used in M3 version
WG0805 Cable 65mm for MIS motor puls/dir 8pin-M12 male Cable 65mm for MIS motor puls/dir 8pin-M12 male
WG0807 Cable 65mm for MIS SSI encoder interface + 2IO M12 8pin male Cable 65mm for MIS SSI encoder interface + 2IO M12 8pin male

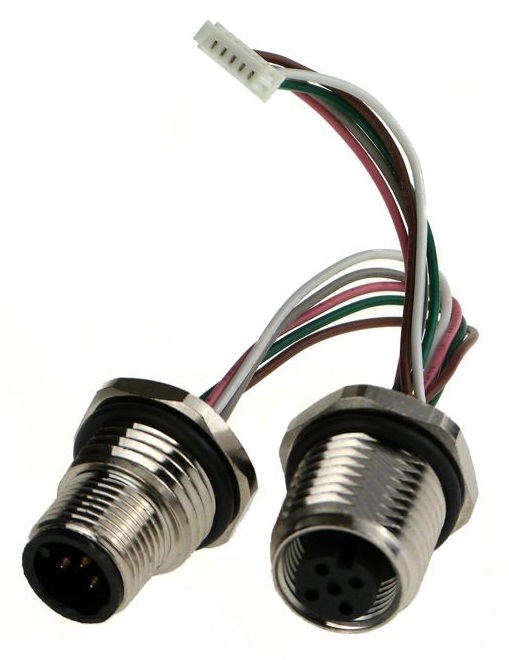

WG0811 Cable 65mm for CANBUS M12 Male and M12 Fem Cable 65mm for CANBUS M12 Male and M12 Fem
WG0795 Cable 0,5m for SMC75 PCB 10p without M12, 10wire free end Cable 0,5m for SMC75 PCB 10p without M12, 10wire free end
WG0901 Power cable 1m 3x0.75+shield Ø6mm Also available in 2, 5 and 10m Power cable 1m 3x0.75+shield Ø6mm Also available in 2, 5 and 10m
WG1001 QS IO cable 1m 16xAWG28+shield Ø6mm. Also available in 2, 5 and 10m QS IO cable 1m 16xAWG28+shield Ø6mm. Also available in 2, 5 and 10m

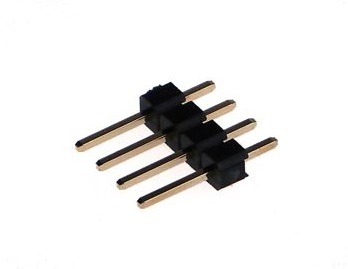

HEAD4LS Header 4 pin for motor connection Header 4 pin for motor connection

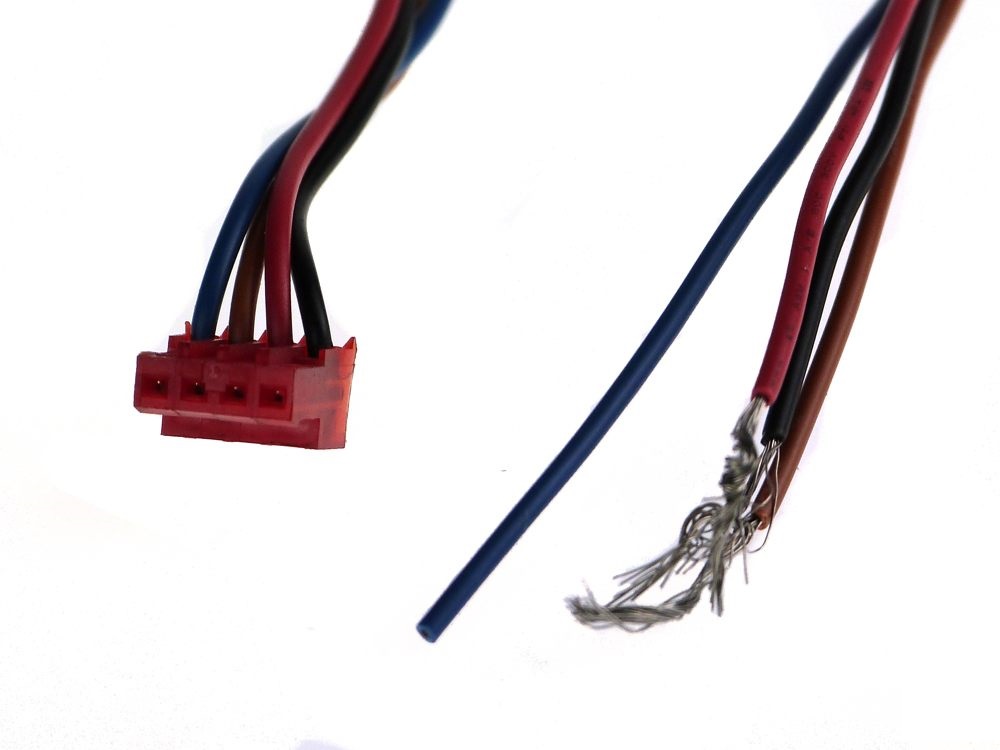

WG0104 4 pol con. 4 wire. 1m. 0,5' for HEAD4LS motor connection 4 pol con. 4 wire. 1m. 0,5' for HEAD4LS motor connection
SPOD-36-B-069-1 J1 counterpart Male header 11.4mm B/B

SPOD-36-B-125-1-R J1 counterpart Male header 16.5mm B/B

SPOD-36-B-212-1 J1 counterpart Male header 25.5mm B/B
