The MIS motor - the complete motion solution
Stepper motor with integrated controller
All necessary components in one unit
The basic idea in the MIS motors is to minimize the installation costs but also to make a component that is much better protected against electrical noise which can be a typical problem when using long cables between controller and motor.

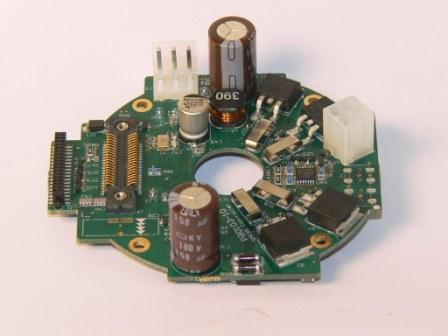

The stepper motor, hallsensor or encoder and electronics are specially developed by JVL so that they together form a closed unit where the power driver and controller is mounted inside the motor in a closed section.

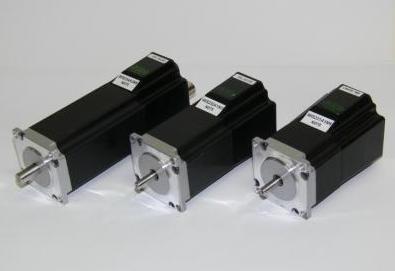

The MIS motors can be delivered in sizes of 1.1 to 2.9Nm, the MIS231 to MIS234 range, 2.5 to 7.2Nm, the MIS340 to MIS342 motor, the MIS430 to MIS432, 10.0Nm to 25.0Nm.
Adapt your motor to your application with firmware

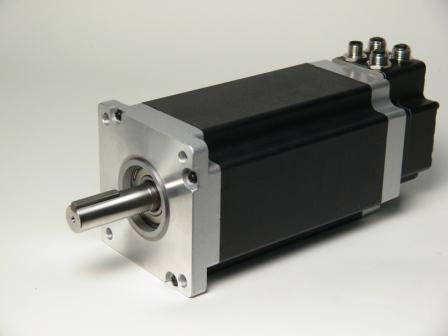

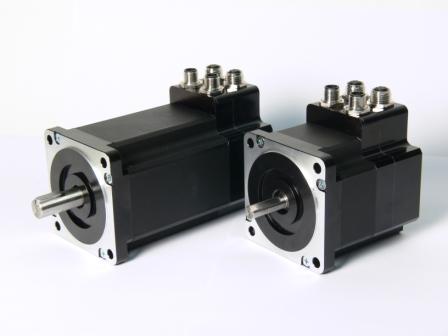

The JVL MIS Integrated Servo Motors can be delivered with different numbers of M12 connectors depending of the application. The MIS17x and MIS23x motors can be delivered with RS485 interface and PLC build in and optional CANOpen. MIS34x and MIS43x have RS485 and PLC build in and optional Profinet, EtherCAT, Ethernet/IP, Powerlink or MODBUS TCP/IP interface.
All MIS motors have optional magnetic absolute encoder build in and MIS34x and MIS43 have optional absolute multiturn encoder build in.
Read more in the Quickstep brochure or click at the pictures for more information.
|
