Special versions of MAC50 - 141 - Integrated Servo Motors


The MAC motors can within a wide range be delivered made to customer specifications. Ordered numbers must be between 10 to 100 pcs. See list here for CAD or PDF drawing.
Below are shown some examples.

MAC Motor, MAC149-X1-01, with round flange and
special shaft (hexagonal)

MAC Motor, MAC140-X1-01, with housing machined
to a desired diameter.


MAC Motor, MAC141-A3AAFA, with IP67 shaft sealing and stainless
steel flange and shaft.


MAC Motor, MAC141-A3AACA, with special color to customers order.


MAC Motor, MAC140-A1AAAF, with 8mm shaft, 36mm long..



MAC Motor, MAC050-A1AEAA, with shorter housing
and cable outlet in the side. Note: It is not possible
to mount an expansion module.
MAC Motor, MAC050-A1ACAA, with cable gland in the side.
Note: It is not possible to mount an expansion module.
MAC motor, MAC141-A1AFAG, with 8mm, 52mm long shaft and hole for mounting of worm gears.

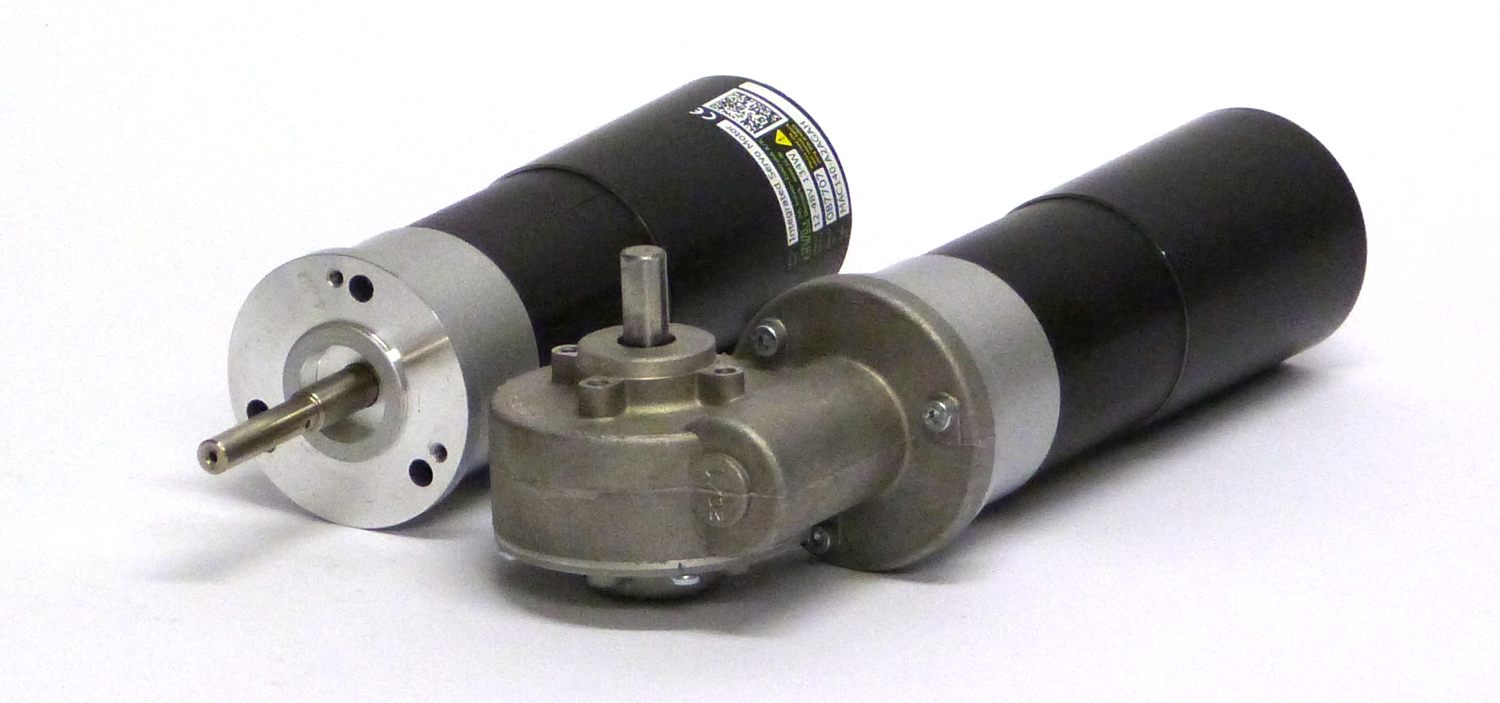

MAC motor, MAC140-A2AGAH, with 8mm, 52mm long shaft for mounting of HFOS worm gears.(left)
MAC motor, MAC140-A2AGAH, with mounted HFOS worm gear.(right)
