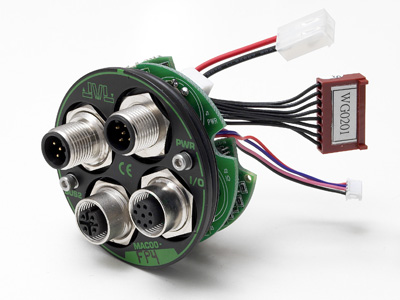

Profibus-DP Module MAC00-FP4

Profibus-DP with M12 connectors
  • Control and setup through 12Mbit/s Profibus-DP
  • Logic I/O´s for High speed start/stop
  • In position indication
  • Home switch
  • Protection IP67
  • RS232 interface
  • M12 connector
  • MAC00-FP4-05 solution with 5m power and I/O cable and 2pcs. Profibus connectors
Profibus DP slave module with baudrate up to 12Mbit. All registers of the MACmotor can be read and written. Isolated IO are available for high speed start/stop, end limit and Zero search function. Address can be set up via software or with DIP switch. The module has M12 connector for use in harsh environment and BUS IN and BUS OUT for easy implementation of bus systems GSD file and and program example for Siemens S7 are available for download.







DETAILED





DOWNLOAD
