Accessories for MAC 50..4500 - Integrated Servo Motors


JVL is concerned that our customers can obtain the necessary accessories from us in order to easily beeing able to build a complete motion control system.
We therefore offer a wide range of accesories as listed below. If you do not find what you are looking for please contact us and we will do our utmost to help you.

MAC motor Accessories Item Protection Class
MAC00-00
End cover for
customers own
connector
IP42
MAC00-01 End cover with
2 cable glands
IP67
1)
MAC00-02 End cover with
4 cable glands
IP67
1)
MAC00-CONKIT1 Connector kit
for MAC basic.
MAC50-141 and
MAC800
-
MAC00-MECHKIT1
MAC00 Expansion
modules spare
part kit
-
MAB23x-01
Brake. 24VDC for
MAC 50-141 series
IP55
1)
MAS23x-01
Shaft reinforcement
for NEMA 23 motors.
Yaskawa/Omron
Flange and shaft
IP55
1)
USB-RS232/485-OPTO
USB to RS232/422/485 adaptor
-
RS485-USB-ATC-820
USB to RS485 adaptor
-
RS485-M12-1-5
Cable for M12, 5pin to RS485 USB. 5m
-
WI1000-M12xyAzzN
M12 connector and free end
x: F for female. M for male.
y: No. of pins. 5=5pin. 8=8pin.

zz: 05 for 5 metre. 20 for 20 metre
IP67
1)
PA0160
Test box for testing and program
development with
MAC and QuickStep Motors
-
PA0190
PA0190 is a IO gateway for MACmotor and MISmotor with 17 pin M12 connectors. It can be MACmotor Industrial Ethernet modules MAC00-Ex41 or MIS34x/MIL34x motor with 17pin M12 connector. The gateway split the 17 pin connector into 4 pcs M12 connectors with different functions.
IP67
RP0000, RP0001, RP0007, RP0008
RP1005, RP1006, RP1007, RP1008
Power Dump Resistors
-

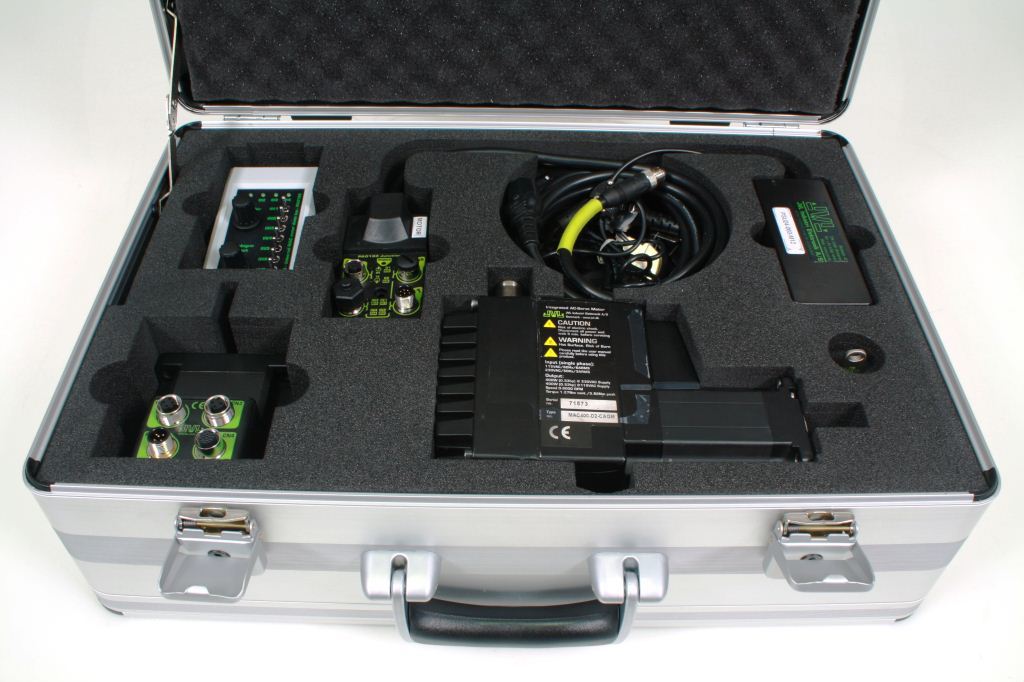

DEMO_MIS340_MAC400hej
Demo suitcase without content made for MIS340 and MAC400-D2 or similar sized motor.
-

1) IP55 or IP67 protection class is only possible if basic MAC motor and
expansion module both are the same IP class.

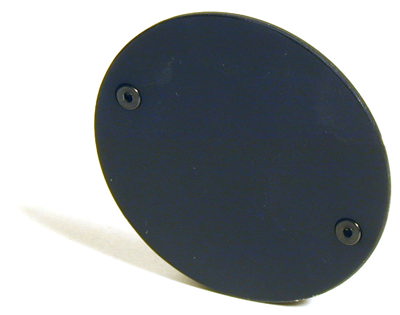

MAC00-00

End cover, IP42, without holes
  • For customers own connector
  • Inclusive screws
  • 1.5mm thick, dia. = 57.3mm
  • Black anodized

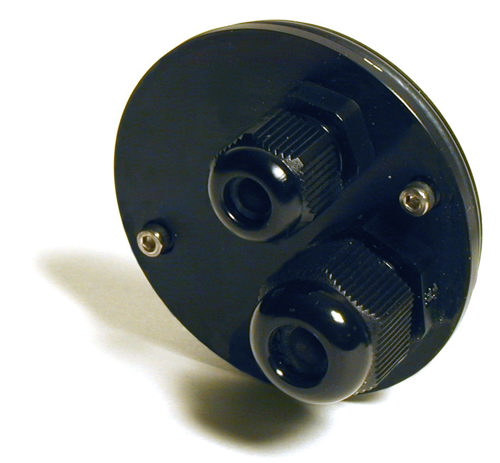

  • MAC00-01

    End cover, IP67, with 2 cable bushes
  • For customers own cable
  • 1 pcs. M12x1.5 cable bush
  • 1 pcs. M16x1,5 cable bush
  • 6mm thick, dia. = 57.2mm

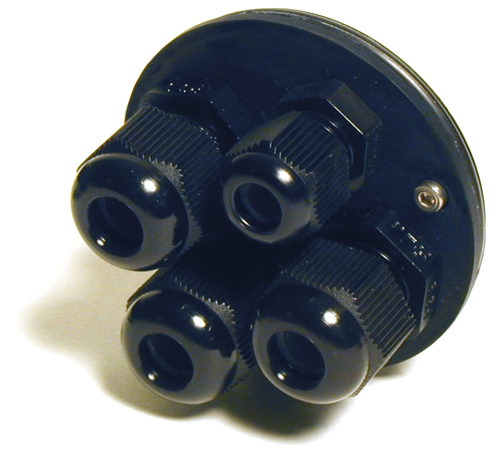

  • MAC00-02

    End cover, IP67, with 4 cable bushes
  • For customers own cable
  • 1 pcs. M12x1.5 cable bush
  • 3 pcs. M16x1,5 cable bushes
  • 6mm thick, dia. = 57.2mm
  •
