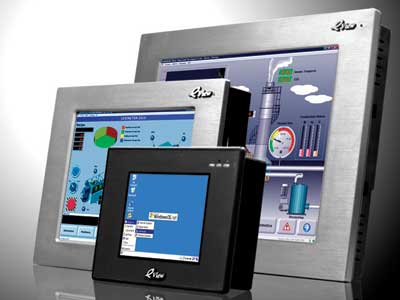

Touch Operator Panels for QuickStep and MAC integrated motors


Wide range of high quality Human Machine Interface panels for use with the integrated servo and stepper motors from JVL.

JVL now provide a wide range of excellent HMI operator panels for all our integrated motors.
Available screen sizes from 4,3" to 15" with resolutions up to 1024 x 768.
Enjoy easy creation of operator screens using the EV5000 development software package for Windows.

Highlights:
  • Connects to all controller versions of MIS231..234
  • Connects to all MAC050..141
  • Connects to all MAC400 and MAC800
  • Easy and intuitive development software
  • All functions that you would ever need, including trend graphs, alarms and recipe handling
  • Advanced Timer functions let you mask out individual bits in MAC/MIS/SMC75 registers
  • Need very special functionality? Just write a macro in C !





  • Ultra fast boot times reduce waiting time after power on. Good connectivity, even the smallest panels have 2 serial ports and an USB-port
