JVL...Integration in motion

ServoStep with closed-loop - come and see the perfect motor at the Motek fair 2017

Hall 8 - Booth 8002
Stuttgart, 9.-12. October 2017

MIS23 exploded

is the market leader within integrated servo and stepper motors with Ethernet onboard. We manufacture stepper motors with holding torque from 0,15 to 25 Nm and built-in controller in sizes from NEMA 17 to NEMA 43 and servo motors from 50-4500 W.

Visit our booth and see our new products and solutions.


Motek Logo


Remember you have free access to the exhibition.

Please register here

Book a meeting with JVL

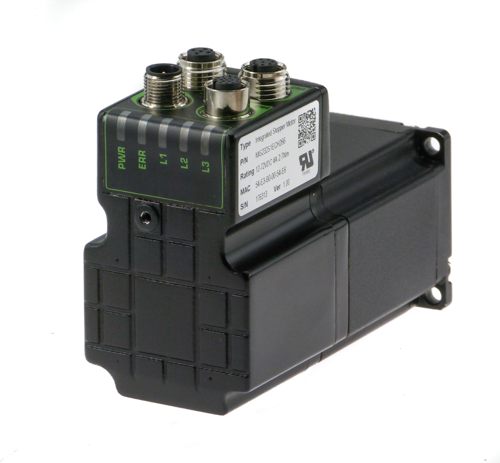

  New MIS23

ServoStep NEMA23 integrated stepper motor with closed-loop and industrial Ethernet

JVL's new NEMA23 motor with Profinet, Ethernet/IP, EtherCAT, Powerlink, MODBUS TCP/IP and SercosIII offers servo speed up to 3000 RPM and torque up to 3,1 Nm

Click for more information

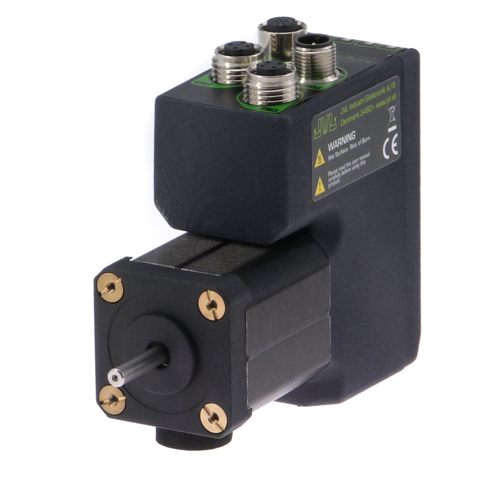

  New MIS17

ServoStep NEMA17 integrated stepper motor with closed-loop and Industrial Ethernet

JVL's brand new NEMA17 stepper motor offers all Ethernet protocols, absolute multiturn encoder, incredibly high micro stepping resolution and closed-loop 3000 RPM and up to 0,8 Nm.

Click for more information

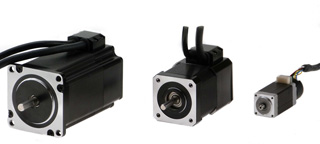

  MST with Encoder

High-torque stepper motors now with encoder

Stepper motors with built-in incremental encoder in different pulse resolutions and IP42/IP67 protection. NEMA08 to NEMA34 with torque from 0,01 to 3,1 Nm.

Click for more information.


New innovative closed-loop technology for integrated stepper motors

JVL's motors now come with closed-loop regulation.

  • 100 % automatic setup
  • Energy saving
  • Stall-free operation
  • Torque control mode
  • Higher acceleration & speed
  • Factory loaded linearization
  • No losing of steps
  • Older motors are supported

See how it works in these two short videos:
Video. Closed-loop rotation.
Video. Closed-loop linear movement.

Click for more information

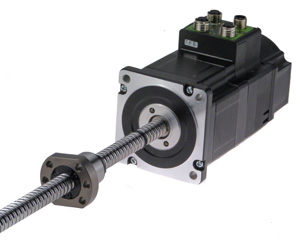

Linear stepper motor with built-in controller

JVL now manufactures stepper motors NEMA23/34 with ball screw, lead screw or captive. Thereby the price is reduced and the construction becomes more compact. The potential errors are reduced as coupling and other mechanical components no longer are needed. PLC, 8IO, RS485 and optional Ethernet is integrated.

The motor now comes with rear end mounted brake as an integrated part of the motor. The brake is controlled automatically.

Click for more information

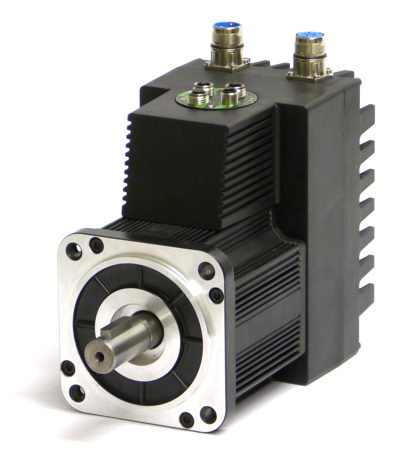

MAC1500, 3000 & 4500 - the complete solution for larger power ratings

All with built-in mains power supply, 3x400/480 VAC. RMS power 1500-4500 W. The MACmotor® series consists of compact and efficient motors where controller, PLC, encoder, power supply and bus system are integrated in one unit. Optional industrial Ethernet, fieldbus, IP protection class, multiturn encoder, brake and much more.

Click for more information

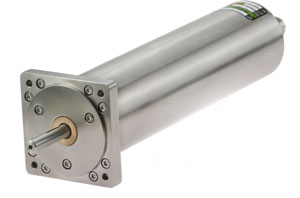

  Stainless steel

MAC141 in stainless steel and IP67

Integrated servo motor in stainless steel and IP67. Optional integrated gear up to 216:1 with maximum torque of 36 Nm. JVL's unique expansion module concept for our MAC motor®s can also be used for this servo motor.

Click for more information

  Industrial Ethernet

Industrial Ethernet for MAC motor®s

One expansion module for all our industrial Ethernet protocols! The module has built-in switch making it possible to connect the motors as a daisy-chain network. The newest industrial Ethernet for our integrated servo motors MAC Motor®s 50 to 4500 W are Sercos III and Modbus TCP/IP. The module has several LEDs enabling technicians to get a quick status overview.

Click for more information
