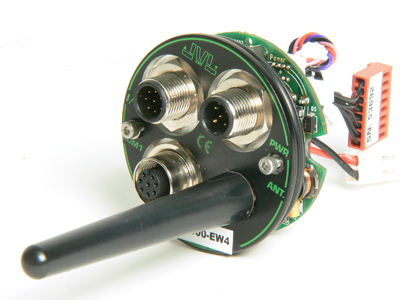

Wireless with M12 connectors.
- Gives full access to all functions and registers of the MAC motor.
- Connection of thousands of modules possible
- Baud rates up to 19200.
- Remote control of the motor·
- 5 in- and 4 outputs
- Programmable via wireless control with MacTalk
-
M12 connectors
This module can be wireless set-up and programmed from a PC or IPC via a COM port. There are 5 in- and 4 outputs for home or limit switch sensors. Programming is done exactly as with the MAC00-Rx nanoPLC module, where advanced programs with arithmetic functions can be programmed from MacTalk. With a special mirror mode it is possible to have an input on one wireless module mirrored to an output on another wireless module without any programming. Typical application can be where a motors is moving around and therefore need power, sensor signals and communication through a slip ring. Other application could be where the control signals come from battery powered, hand-held equipment and a cable therefore can not be used.
|
