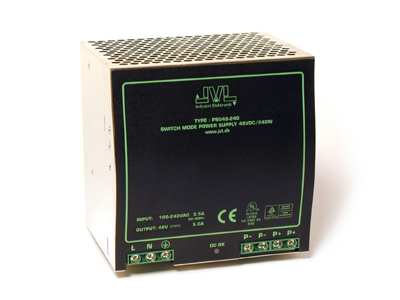

Switch Mode Power Supplies PSU48 - 240 / PSU24 - 240


High Quality Power Supplies
  • 48VDC high efficiency switchmode supply
  • Full range AC input.
  • 110-240VAC, 50/60Hz
  • High efficiency, low working temp.
  • Built in EMI filter, low ripple noise
  • Power on LED indication
  • Compact size, light weight
  • 100% full load burn-in test - high reliability
  • Short circuit/ over load/ over voltage/ temp. protection
  • Convection cooled
  • Installed on DIN rail TS35/7.5 or 15
  • PFC 0.98@115VAC; 0.95@230VAC
  • Approvals: UL/CUL/TUV/CE
  • Unsurpassed quality/price ratio
  • ISO-9001 certified production
  • Measures HxWxD, 126x126x100

The Power supply PSU48-240 is a modern switchmode supply that is particularly well suited for supplying the range of integrated MAC motors with 48 Volts DC.
The Power supply can deliver up to 5A and can thereby drive all the MAC motors, MAC50, 95 and 140.




It offers a high efficiency and a very low ripple noise, and includes a complete range of protection facilities.
PSU48-240 is designed for direct installation on DIN rails as commonly used in control cabinets.

24VDC, 10A also available, see Datasheet (Detailed) for more information
