Connection for QuickStep Integrated Stepper Motors

Connectors can be cable glands, wires with rubber sealings or M12 connectors

Rubber Sealing

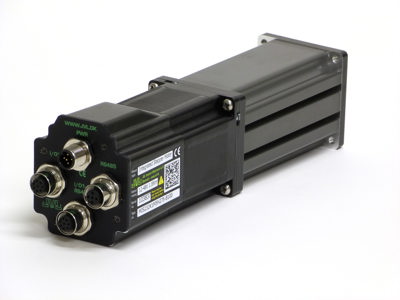

M12 Connector


M12 Connector standard
Description M12 Photo (rear view)
Pin configuration

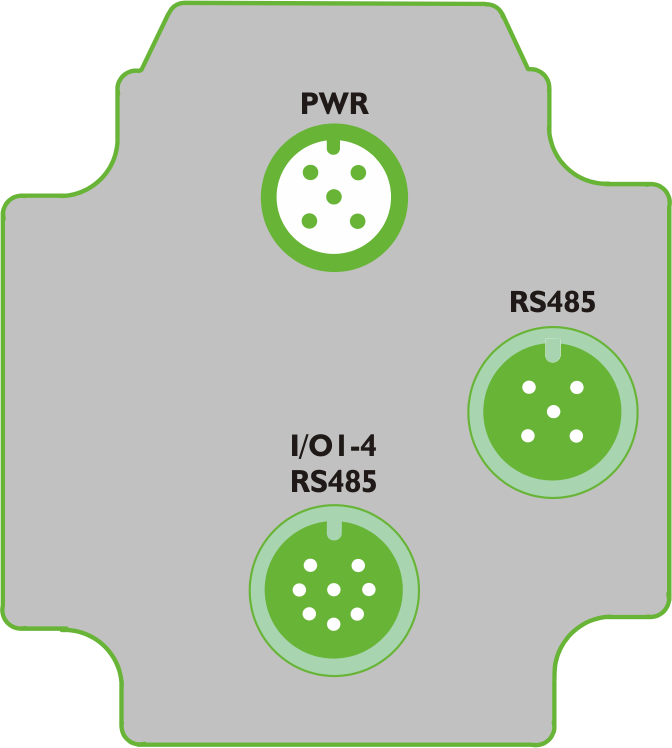

M3 RS485/4IOA
1x 5 Pin Male (rear)
1x 8 Pin Male (rear)
1x 5 Pin Female (rear)

Link

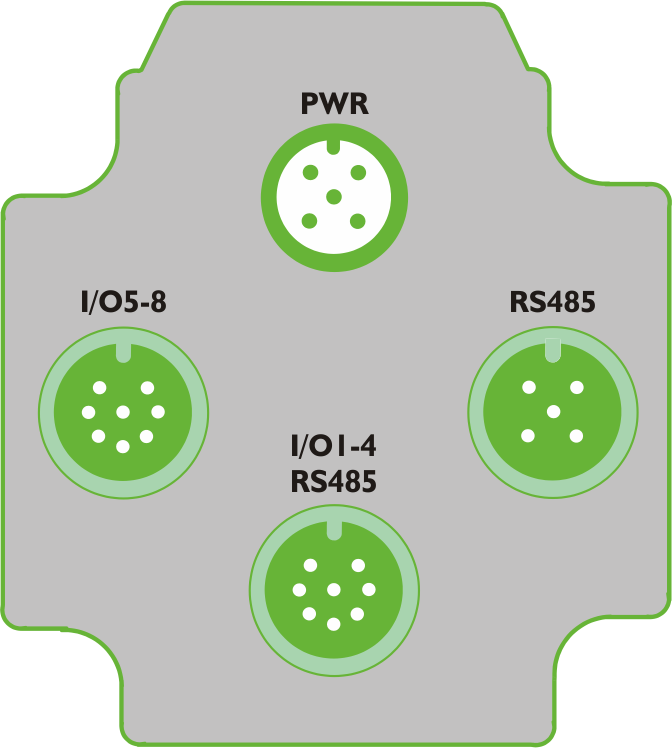

M5 RS485/8IOA
1x 5 Pin Male (rear)
1x 5 Pin Female (rear)
2x 8 Pin Female (rear)
Link
M6 RS485/4IOA/2xCAN
2x 5 Pin Male (rear)
2x 8 Pin Female (rear)

Link

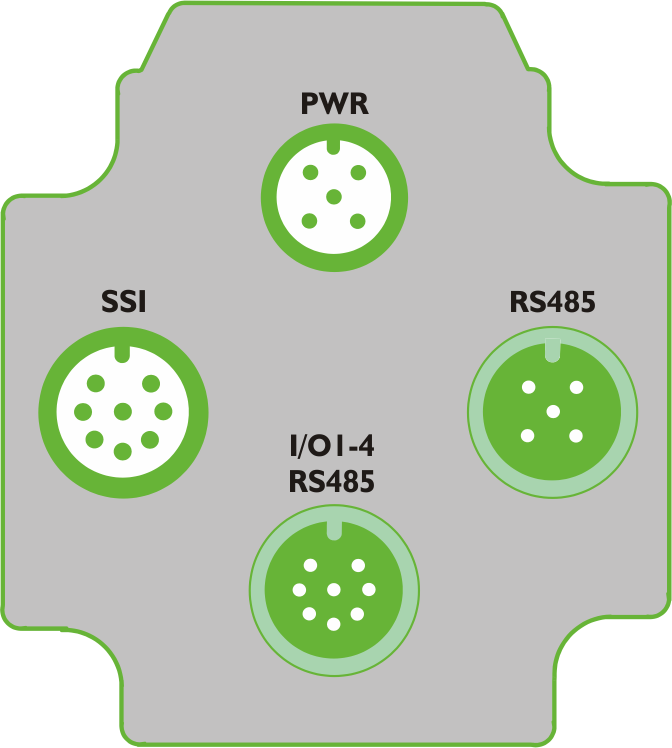

M9 RS485/4IO/SSI
1x 5 Pin Male (rear)
1x 8 Pin Male (rear)
1x 5 Pin Female (rear)
1 x 8 Pin Female (rear)
Link
M12 Connector special

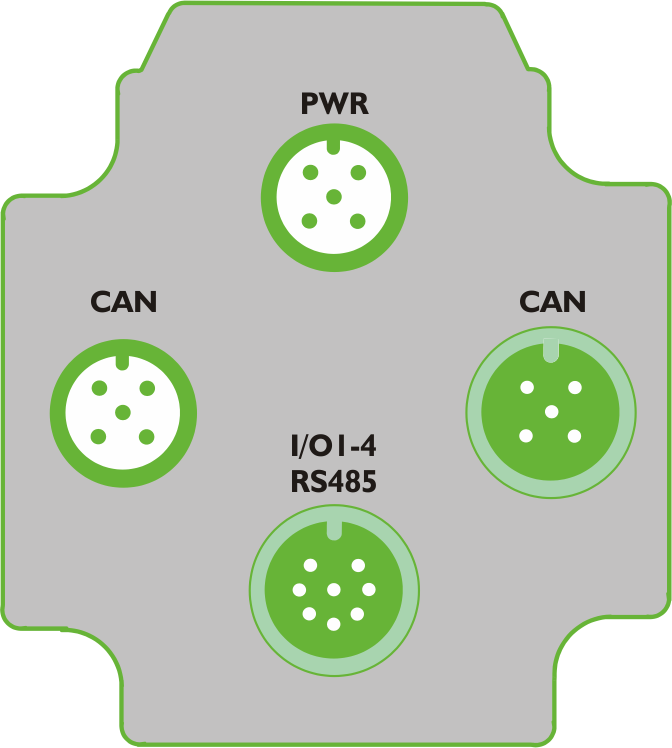

MB RS485/4IOA/2xCAN
2x 5 Pin Male (rear)
1x 5 Pin Female (rear)
1x 8 Pin Female (rear)

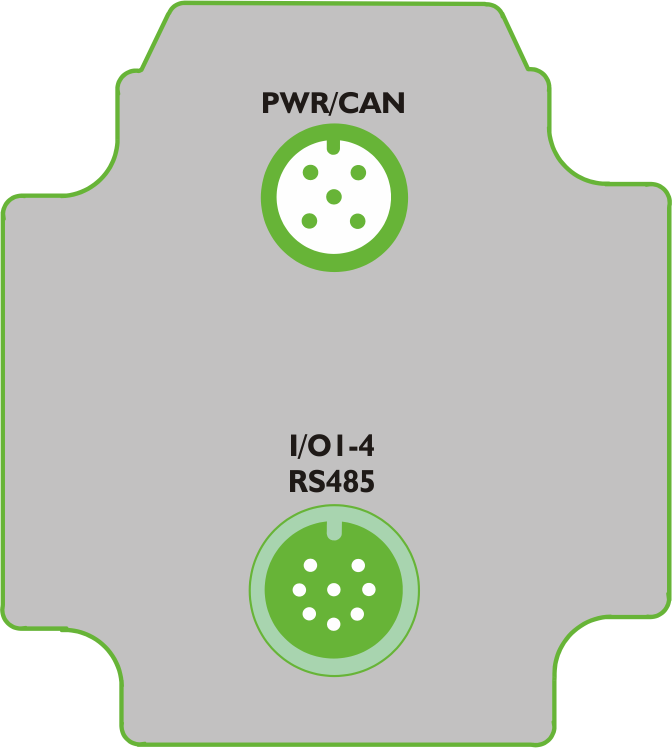

ME RS485/4IOA/CAN
1x 12 Pin Male (rear)
1x 8 Pin Female (rear)

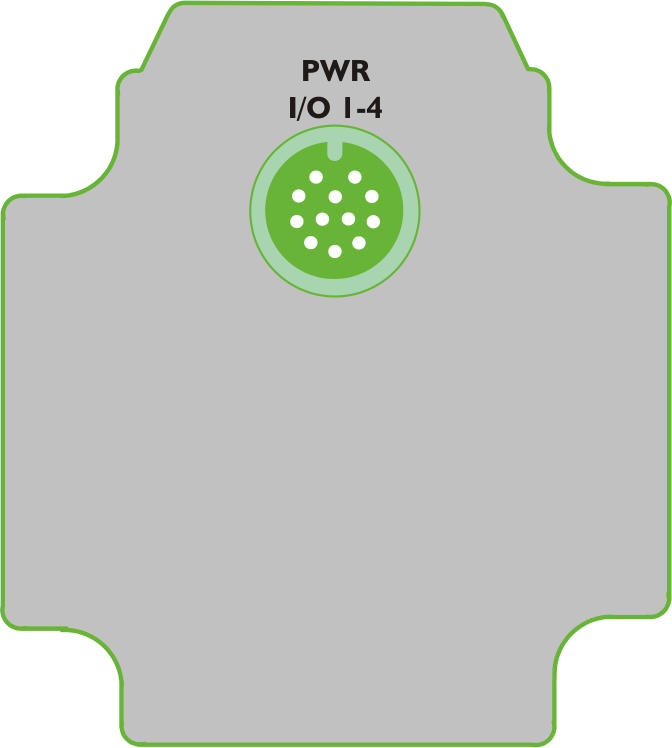

MG RS485/4IOA 1x 12 Pin Male (rear)

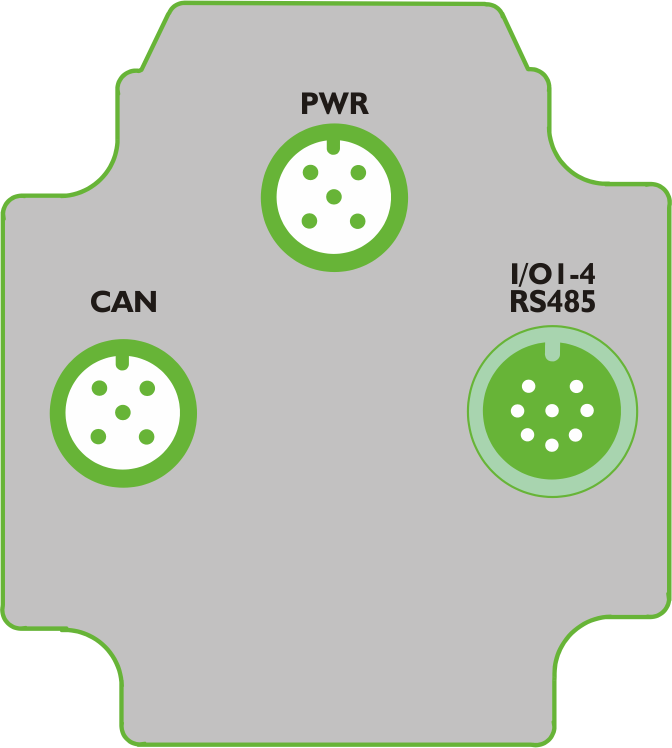

MH RS485/4IOA/CAN
2x 5 Pin Male (rear)
1x 5 Pin Female (rear)
1x 8 Pin Female (rear)

ML RS485/4IOA/CAN 1x 17 Pin Male (side)

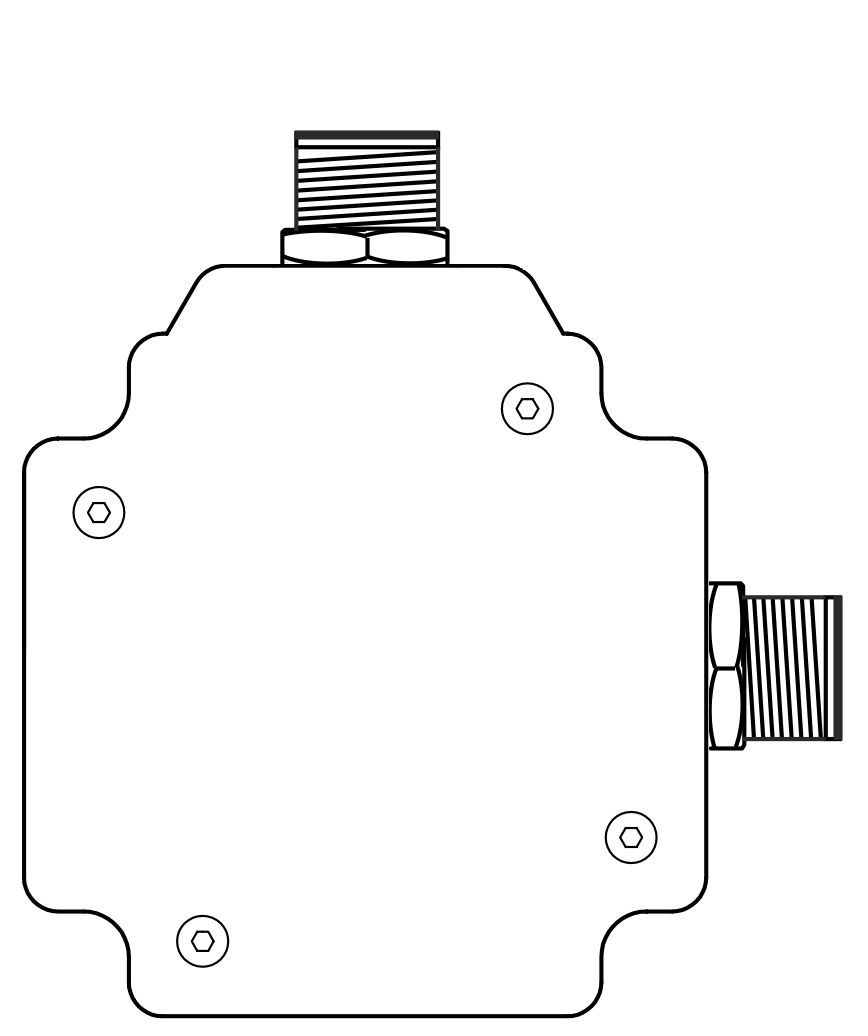

R2 RS485 and 4IOA
1x 5 Pin Male (side)
1x 8 Pin Male (side)

Special connections cable glands

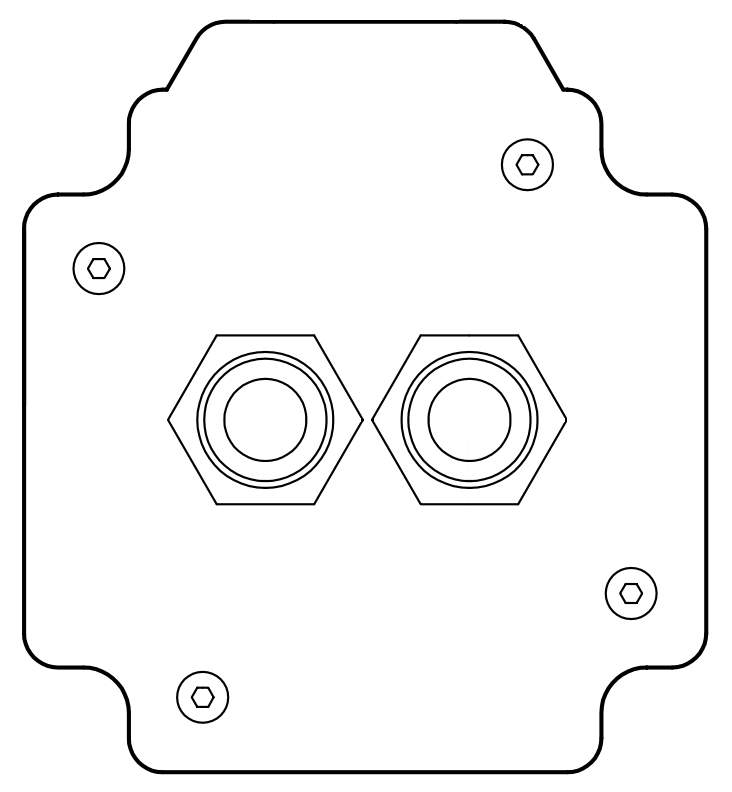

W0 RS485 and 8IOA 2x Cable glands (rear)

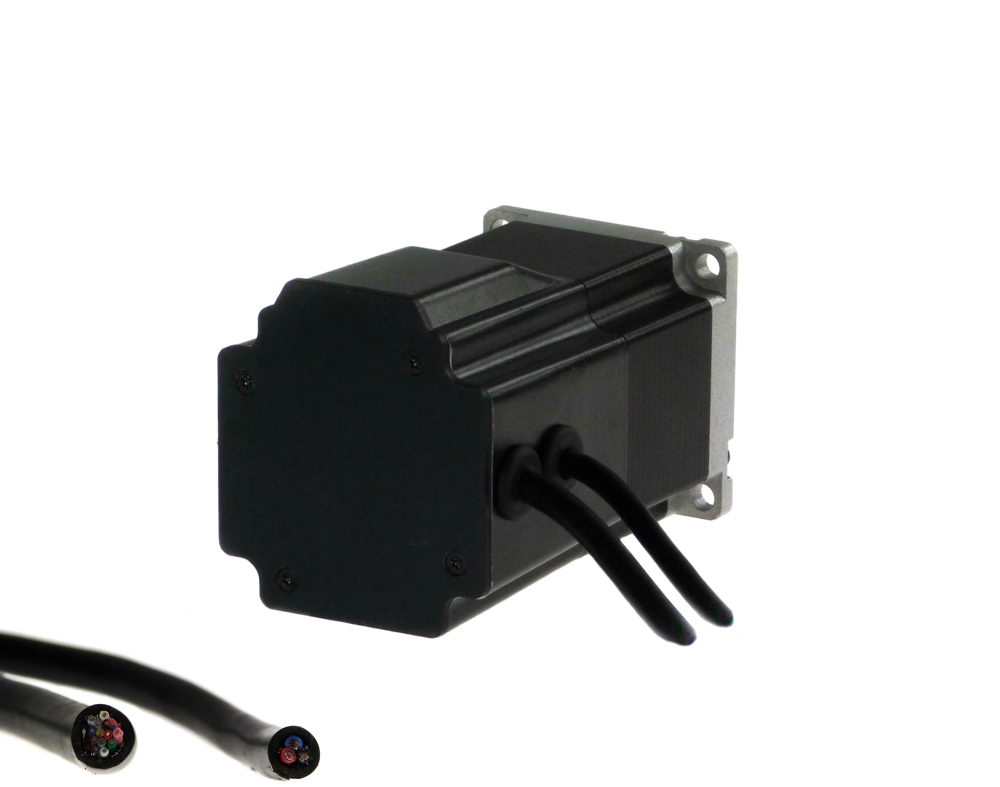

Z3 RS485 and 8IOA 2x Rubber sealing and cable (side)

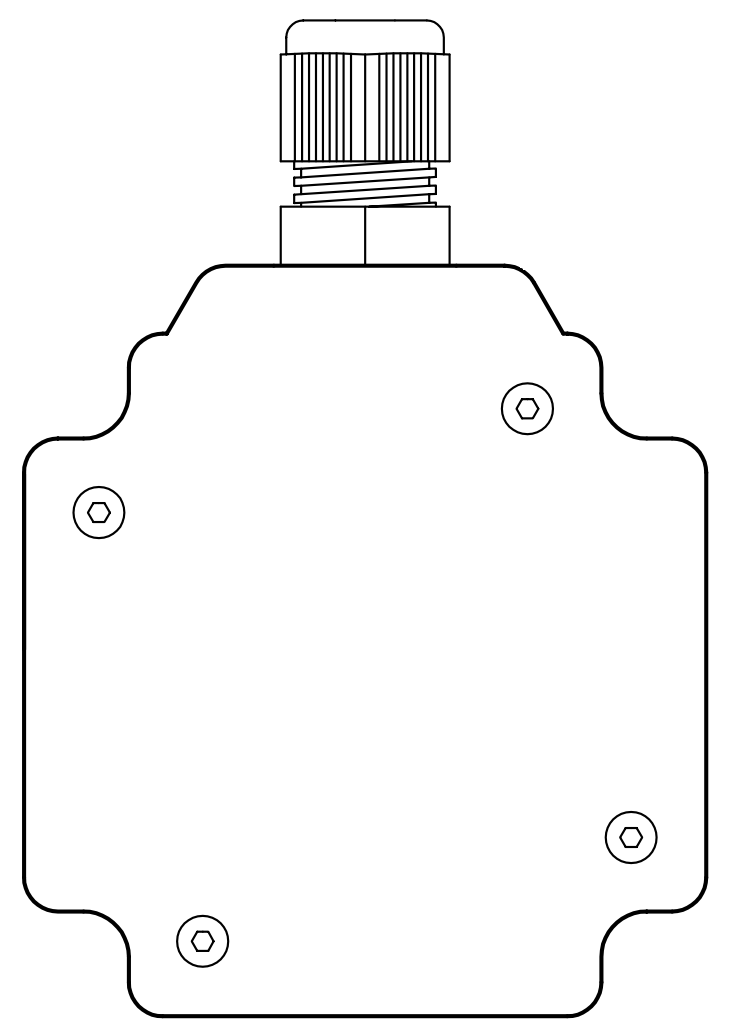

C1 RS485 and 8IOA 2x Cable glands (side)
Link
