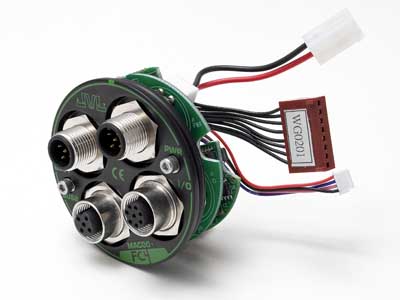

CANopen Module MAC00-FC4

CAN/CANopen with M12 connectors
  • Control and setup
  • Logic I/O for high speed start/stop
  • Position torque, and velocity control
  • I/O can be used for end-of-travel limits and high speed start/stop
  • Hardware and software adjustment of baud rate and address
  • Galvanically isolated I/O and network connections
  • RS232 Interface
  • CANopen DS301/DSP402
CAN Open slave module with baudrate up to 1Mbit. CANopen DS301 V3.0 and DSP 402 V2.0. All registers of the MAC motor can be read and written.The module has M12 connectors for use in harsh environments and BUS IN and BUS OUT for easy implementation of bus systems. M12 connector module has 4I/O eg. 2 inputs, 1 outputs and O+. On special request the module is available with cable glands with 6 inputs and 2 outputs.
