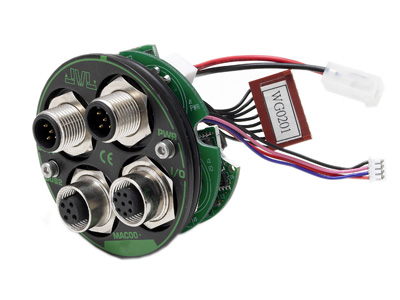

High Speed Serial RS485 Module MAC00-FS4

High speed serial RS485 with M12 connectors
  • High speed RS485
    - DMX512, MacRegIO and OCX can be used
    - Not for MacTalk
  • Opto-isolated I/O and RS485 for high noise immunity
  • RS232 for set-up using MacTalk
  • Multiaxis operation up to 255 axes
  • 9.6 - 921 Kbit communication
  • Can fast and efficiently control up to 512 motors from the same DMX master.
  • M12 connectors for demanding applications
  • Dual supply
High speed isolated RS485 module for up to 255 multiaxis applications.
I/O are available for local home sensor or limit input and thereby avoid long cables to PLC.
It is possible to send new position data to 255 axes in just 133ms and thereby save valuable machine set-up time. The FSx module is the only product on the market that has this possibility where normal transmission speed is 38Kbit or 56Kbit transmission.
The module has proved it´s worth in several projects with more than 200 axes.
RS232 and RS485 are available and using the MACComm OXC (ActiveX) together with the FS1 and FS4 module makes it easy to develop Windows software applications.
