Simple Solution Module MAC00-CS

Low Cost Module
  • Cable connected directly to basic motor connector
  • User I/O connection
  • 2, 10 or 20 meter cable
  • 2 NPN outputs
  • Pulse/direction or RS422
  • +/-10V and encoder feedback
  • IP67
  • Dual supply not available

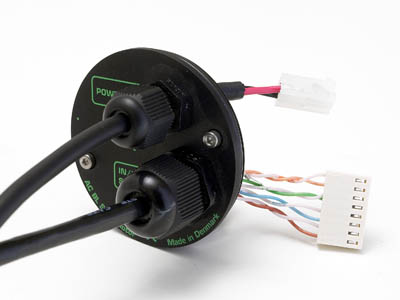

Low cost module that can be used for pulse/direction or ±10V analogue control. Tha analog input can also be used in open loop to control position, velocity or toque. Encoder output for external master controller that close the loop. When the module is mounted it is not possible to access the motor with a serial interface. If this is wanted use the MAC00-Bx module where you have CS functionality but also RS232 and RS485 interface. The module is normally used when the machine builder sets up the MAC motor, without module mounted, with the special cable RS232-9-1-MAC. Thereby the end user can not by mistake access and change any parameters. The module do not contain any electronics so all the basic MAC motor signals are available in the cable.


Type Cable length
MAC00-CS-02 2m/79"
MAC00-CS-10 10m/393"
MAC00-CS-20 20m/787"
