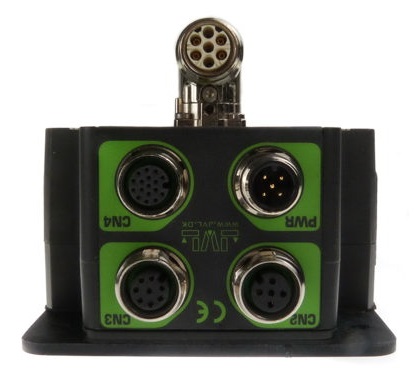

Stepper Motor Controller SMC85 with Housing


Stepper Motor Controller - programmable with 8 IOs and several options

A Stepper Motor Controller with RS485 and CANbus serial interface. 8IO can be configured to input, output or analog input. Can be controlled via nanoPLC and MacTalk. The very compact, 78.4x86.2mm, PCB contains everything needed to solve a modern control task as stand-alone or controlled from a PLC or PC. MODBUS RTU and CANopen gives the possibility for easy connection to a PLC. For PC or IPC an ActiveX/OCX driver is available so that interface to LABview, Excel, VB or other Windows-programs is simple.
  • NanoPLC with 8IO in 24V
  • RS485 up to 962kbit
  • Compatible with all Ethernet protocols (optional)
  • CANOpen DSP402 (optional)
  • MODBUS RTU
  • Resolution up to 819.200 step/rev.
  • Velocity precission 0,01 RPM
  • Pulse/Direction mode
  • Supply 12-80VDC
  • Motor current 0-9 Amp RMS
  • Dual supply for safe emergency stop
  • Active X / OCX driver available
  • M16 angled motor connector (M12 connector optional)






Partnumber
Current Amp RMS
Motor connector
Application
PLC 8IA
RS485/
SSI
Bus communication
SMC85A1-Q5AABX4
0-3
M12
PLC,Pulse/dir
Yes Yes
RS485 in / out
SMC85A1-EPAABX4
0-3
M12
Ethernet
Yes Yes
Profinet in / out
SMC85C1-Q5AABX5
0-9
M16
PLC,Pulse/dir
Yes
Yes
RS485 in / out
SMC85C1-Q9AABX5
0-9
M16
SSI
Yes
Yes
RS485 in
SMC85C1-P6AABX5
0-9
M16
CAN
Yes
Yes
CAN in/ out
SMC85C1-EIAABX5
0-9
M16
Ethernet
Yes
Yes
EtherNet/IP in/out
SMC85C1-EPAABX5
0-9
M16
Ethernet
Yes
Yes
Profinet in/out
SMC85C1-ECAABX5
0-9
M16
Ethernet
Yes
Yes
EtherCAT in/out
SMC85C1-EMAABX5
0-9
M16
Ethernet
Yes
Yes
MODBUS TCP in/out
SMC85C1-ELAABX5
0-9
M16
Ethernet
Yes
Yes
Powerlink in/out
SMC85C1-FBAABX5
0-9
M16
Wireless
Yes
Yes
RS485 in, Bluetooth
SMC85C1-EWAABX5
0-9
M16
Wireless
Yes
Yes
RS485 in, WLAN
SMC85C1-EyAABX5
0-9
M16
Ethernet
Yes
Yes
Ethernet in, SSI
y: 2 = Ethernet, 3 = Ethernet/IP, 4 = Powerlink, 5 = MODBUS TCP, 6 = Profinet, 7 = SERCOSIII (1 pcs Ethernet in, and 1 pcs SSI/IO5/IO6 connector).
BX4 for M12 female straight motor connector.
BX5 for M16 female angle motor connector.

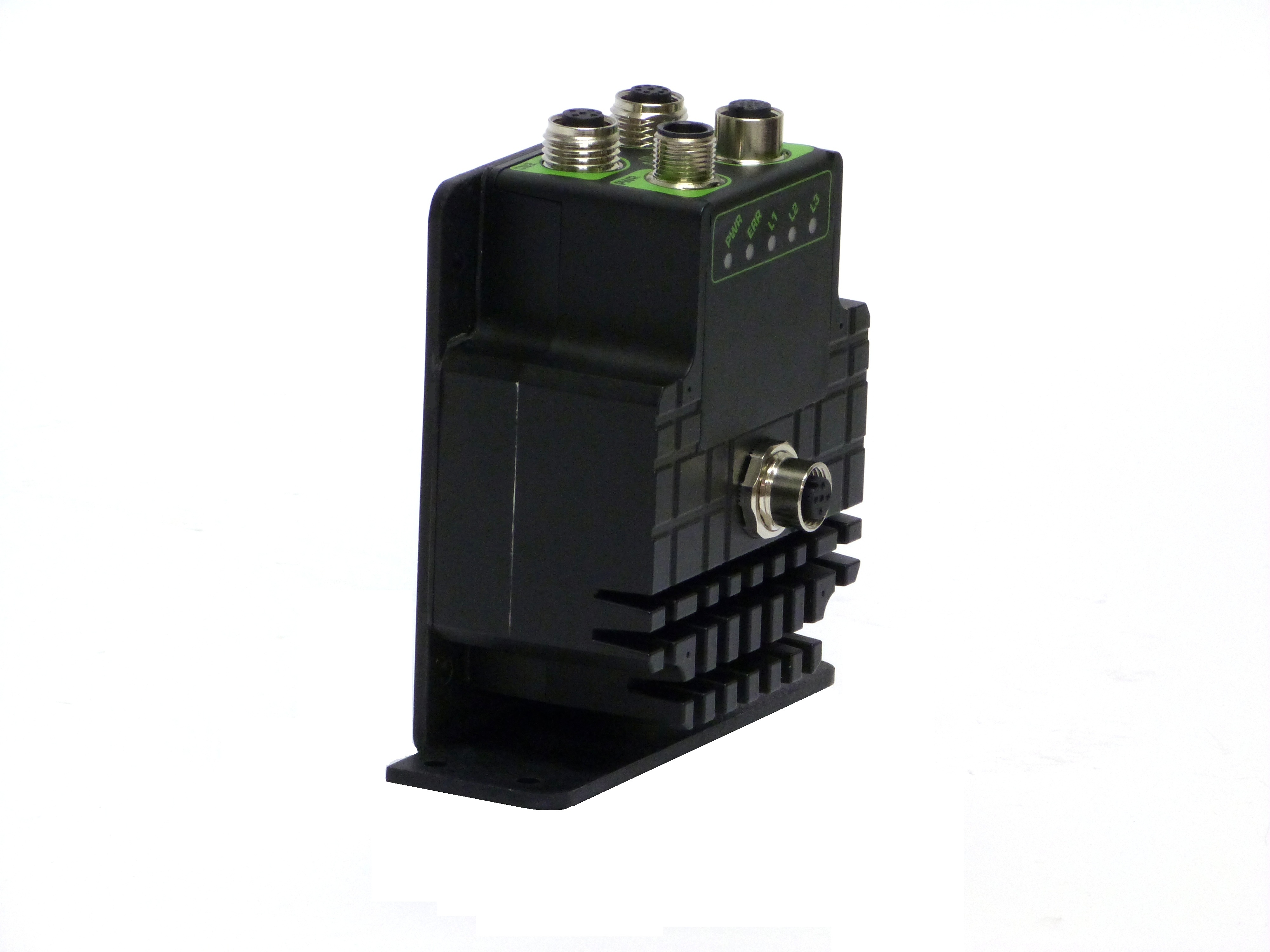

The box can be mounted on a buttom plate or on DIN rail. Click here to read more about MIS34x integrated stepper motor solutions.

Motor connection M12 or M16
M12 M12 Angle cable type, WI1000-M12F5VxxN
M16 M16 Motor cable type WP2101 (1m), WP2105 (5m), WP2120 (20m)
Motor phase A+
Pin 1
Brown
Pin 1
Black "1"
Motor phase A-
Pin 2
White
Pin 2
Black "2"
Motor phase B+
Pin 3
Blue
Pin 4
Black "3"
Motor phase B-
Pin 4
Black
Pin 5
Black "4"
Ground/Housing
Pin 5
Grey
GND
Yellow/green
xx: 05 mean meter. 20 mean 20 meter. For models with M12 motor connector use loose connector WI1008-M12M5SS1 or WI1008-M12M5VG1.
M16 straight connector type is available type SMC85-CONKIT1-PWR but demand special tooling.
