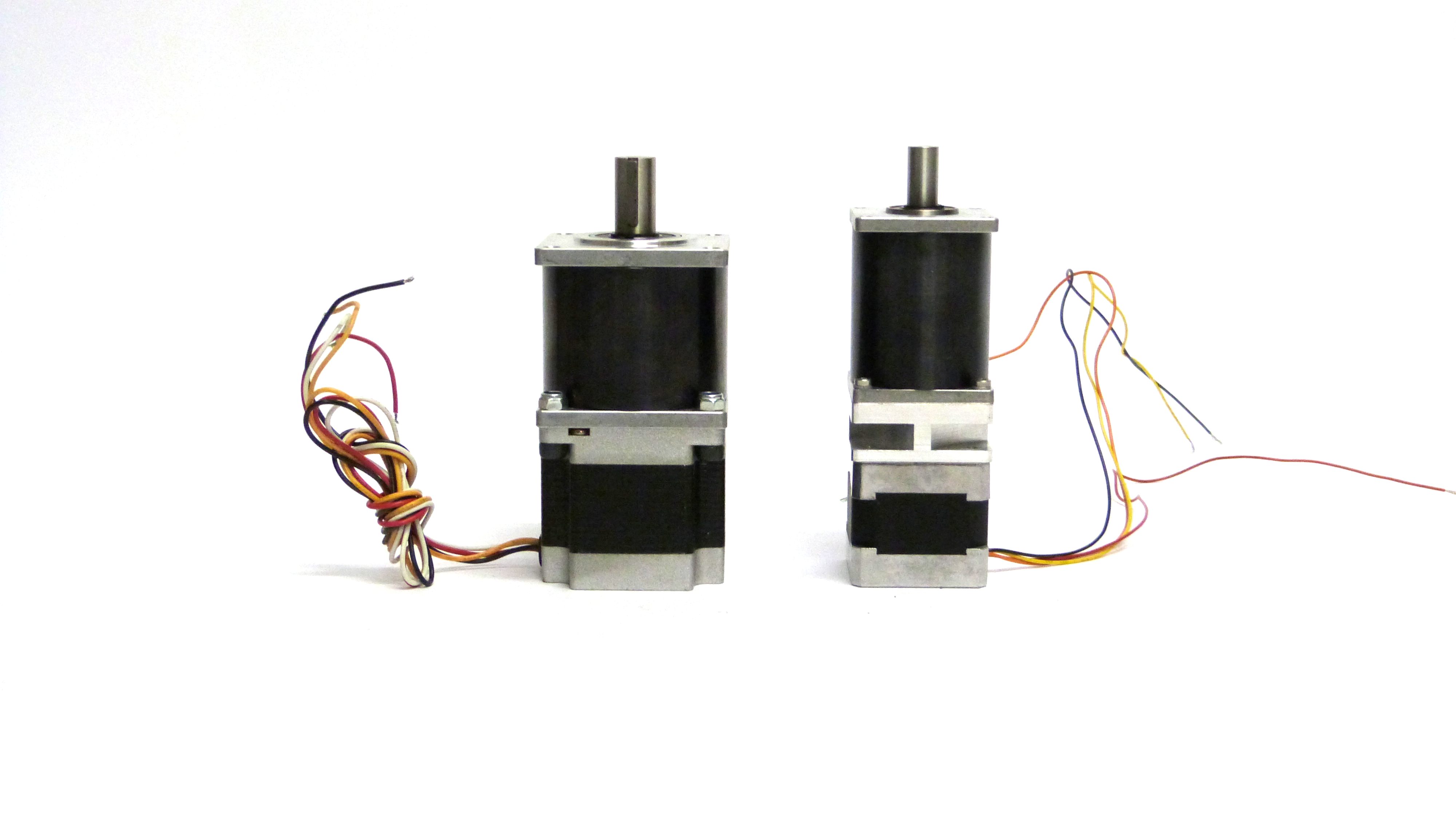

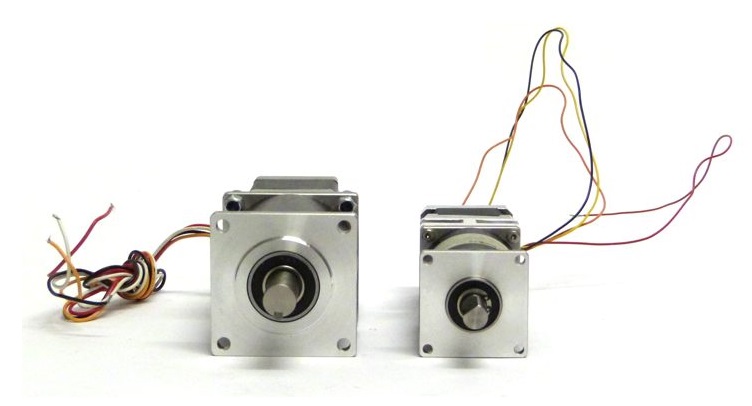

Planetary gearbox

Planetary gearbox HMEH04 with round flange (Square rear end flange). Ø40mm.
Part number:
HMEH04NxxxK1N1710yy

xxx: Ratio from 005 to 500
yy : Input shaft diameter 5M: 5mm, 6J: 6,35mm

Planetary gearbox HMEH04 with round flange (round rear end flange). Ø40mm.
Part number:
HMEH04NxxxK2N1710yy

xxx: Ratio from 005 to 500
yy : Input shaft diameter 5M: 5mm, 6J: 6,35mm

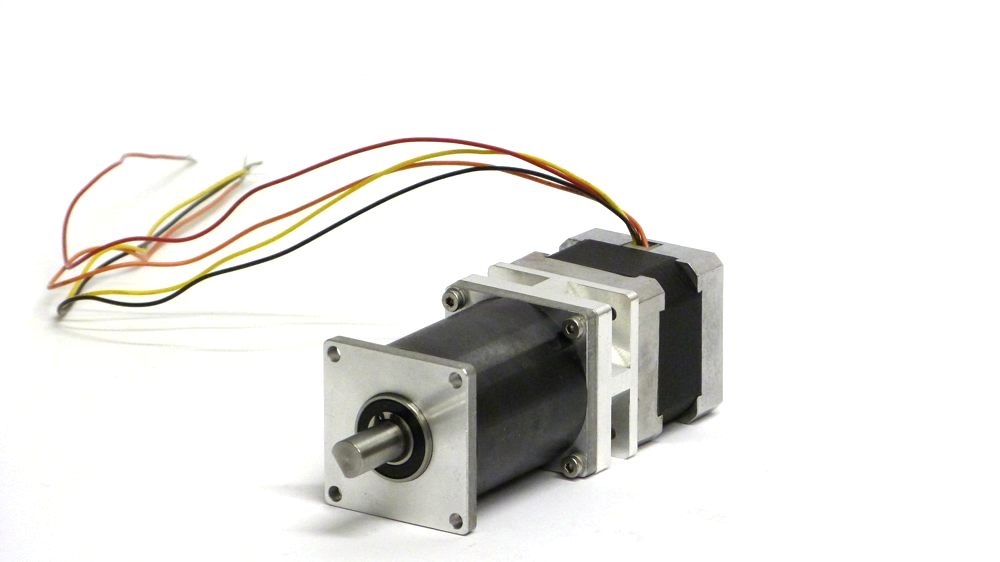

Planetary gearbox HMEH04 with square flange. Ø43mm.
Part number:
HMEH04NxxxK1N1710yy

xxx: Ratio from 005 to 500
yy : Input shaft diameter 5M: 5mm, 6J: 6,35mm

Planetary gearbox HMEH05 with square flange. Ø57mm.
Part number:
HMEH05NxxxK1N2310yy

xxx: Ratio from 005 to 500
yy : Input shaft diameter 5M: 5mm, 6J: 6,35mm

The grease used in this type of gear is ISOFLEX TOPAS L 32 from Klüber, details can be seen here.

Be advised: For shafts longer than 12 cm. adapter is required, contact JVL for further information.
