12-48 VDC 400W Integrated Servo Motor Is Available From JVL!

PRESS RELEASE FOR IMMEDIATE RELEASE: February 3, 2014.

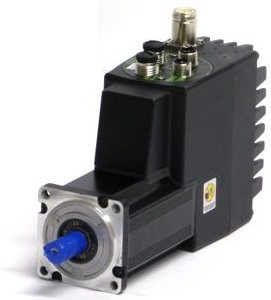

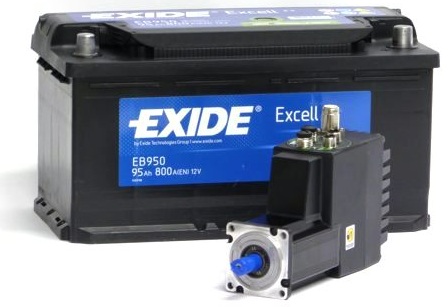

MAC402MAC402 car batteryMAC402 Antenna



Birkerød, Denmark -- Designed for battery powered and low voltage applications the MAC402 is now available from JVL, a leader in the field of integrated servo and stepper motors. The MAC402 is the VDC version of the popular MAC400 400W integrated servo motor. The supply range for the MAC402 is from 12VDC up to 48VDC, and full power of 400W (RMS) up to 1200W (peak) can be reached with 24 to 48VDC. This powerful, compact motor measures just 191mm (7.52 in.) x 60mm (2.36 in) x 114mm (4.49 in.) Applications include but are not limited to: Remotely operated robots, robotic vehicles, portable equipment, tracking devices, antenna mounts, and positioning devices.

Only JVL presently offers a 400W continuous (1200W peak) integrated servo motor in the supply range of 24 - 48VDC operating at 0 to 3000 RPM. In many applications it is not necessary to choose a 750W or larger motor as the 400W (1200W peak) motor will be sufficient, thereby reducing cost and saving space. MAC402 options include: Brake, absolute multi turn encoder, and planetary & cycloidal gearheads.

A wide selection of communication modules is available for MAC402 motors including: Basic modules for Pulse-Direction (or analog input) or fieldbus modules including Profibus, Devicenet and CANopen, or programmable modules with easy connections to local sensors make integration into new and existing applications easy. Moreover, a wide variety of industrial Ethernet options are available: EtherCAT, EtherNet/IP, Profinet, Powerlink, Modbus TCP and Sercos III. With the VDC supply option the advantages of the MAC400 VAC servos have been expanded to include applications for battery and low voltage operation, from 12 to 48 VDC. With wireless options like WLAN/Wifi, Zigbee or Bluetooth, the MAC402 MAC motor®can run completely wireless.

A big advantage of using an integrated MAC motor®is that there is no need for a separate servo driver/controller. The advantages are: Space savings in the control cabinet, eliminating expensive motor and encoder cables, RFI/EFI noise is minimized due to internal cabling, and connection errors between driver and motor are eliminated. Additionally, service is much easier as the motor and controller are replaced as a single integrated unit minimizing downtime and maximizing production.

About JVL - JVLis recognized as a leader for its development of efficient and compact integrated motors for VAC and VDC. MAC motor series of integrated VAC servo motors (up to 4500W and 13,5kW peak), and the QuickStep integrated stepper motors (up to 25Nm). Both the servo motor and stepper motor series includes the controller, PLC, encoder, AC power supply and bussystem integrated into one compact unit. All industrial ethernet busses like Profinet, EtherCat, Ethernet IP, Modbus TCP, Powerlink etc. are available.

JVL with more than 20 years of motion control experience enjoys a reputation for the development of higly specialized integrated motors with industrial ethernet and customized improvements. They work together with their customers and representatives to find an economic, yet technically advanced solution to complicated control applications.

JVL's wide selection of quality products for motion control components include: Integrated VAC and VDC Servo motors, Integrated Stepper motors, VAC Servo motor controllers, Motor drivers (Stepper, VAC and VDC), Brakes, Gears, and HMI Modules.

For further information, please contact:
JVL Industri Elektronik A/S, Bregnerødvej 127, 3460 Birkerød, Denmark. Tel. +45 4582 4440.
E-mail: jvlnyt@jvl.dk. Web: www.jvl.dk
