MAC402 Integrated Servo Motor 12-48VDC

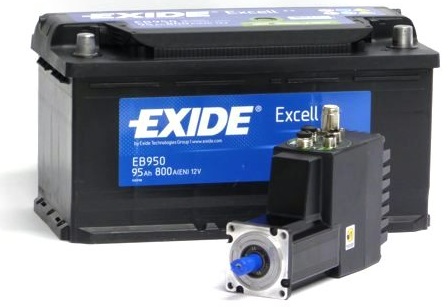

MAC402 - The complete 400W solution for medium power ratings with battery supply 12-48VDC.
Peak power up to 1200W.
Choose between model with or without brakes.
IP55 standard. IP66 optional.

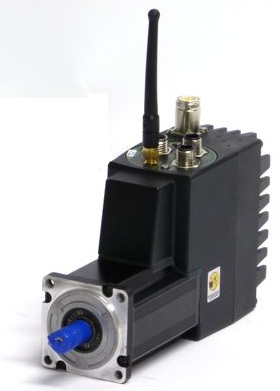

Wireless, Industrial Ethernet or PLC build in.

Motor size is:
  • MAC402-D2 400W
  • MAC402-D5 (with built-in brake) 400W
New features:
  • Absolute multiturn encoder without battery
  • Real-time industrial Ethernet: Profinet, Ethernet/IP, MODBUS TCP, EtherCAT, Powerlink and SercosIII
  • 2 RS422 channels for encoder in/output and SSI encoder etc.
  • 6IO for capture of position, interrupt, counters, enable, timer and PLC functions

The MAC integrated ac servo motor is unique in any way!
MAC400 series of integrated servomotors from JVL Denmark
JVL is the world leader in integrated stepper motors & smart motors
We offer highly innovative solutions in integrated servo motors.
Get low installation cost and faster installation with integrated servo motors from JVL

Expansion module you can choose between:
  • Basic Modules
  • Programmable Modules
  • Field Bus Modules
  • High Speed Multi-Axis Modules
  • Wireless Modules
See the ACCESSORIES, GEARS, and POWER SUPPLIES for further possibilities.




If you need 115 to 230VAC supply voltage click here.
