Stainless steel MACmotor 370W peak, MAC100 and MAC101


It's now possible to have a MAC141 in a stainless steel housing and in a IP67 version.

Different modules with M12 connectors can be chosen:
  • Basic Modules
  • Programmable Modules
  • Field Bus Modules
  • High Speed Multi-Axis Modules
  • Wireless Modules
See EXPANSION MODULES SELECTION CHART.

Gears with different ratios can also be chosen for these applications.

See the ACCESSORIES, GEARS, POWER SUPPLIES and SPECIAL VERSIONS for further possibilities.


MAC141
It's now possible to have a MAC141 in a stainless steel housing and in a IP67 version.
Different modules with M12 connectors can be chosen:
Stainless steel MAC
d

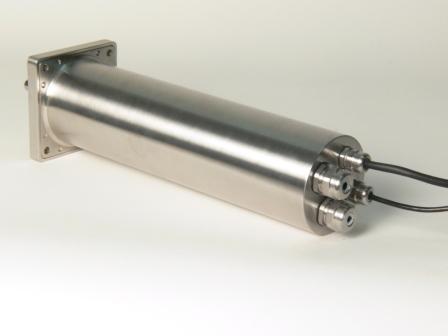

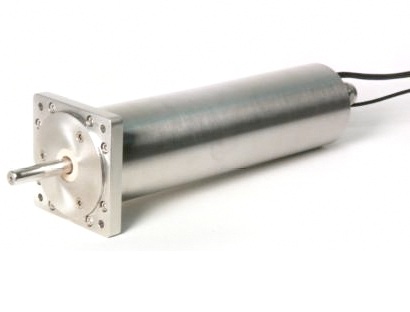

These stainless steel motors are designed to handle IP67 and withstand high pressure
wash down conditions.
JVL stainless steel servo motors are designed to be a durable solution for long time operation.

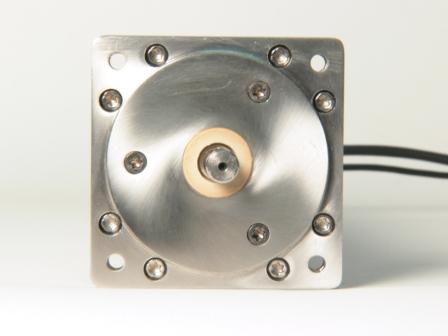

The concept is based on a totally sealed stainless steel tube with front flange and
rear cover also in stainless steel.
It can be delivered with a built-in planetary gear box in ratios from 3:1…1000:1.
- 100% stainless steel shaft, flange, tube and rear end cover.
- Speciel teflon sealing for long lasting watertight operation.
- Cost effective in harsh wet corosive enviroment
- Shaft seal and leak-proof cable glands entry provide watertight sealing in both ends.
- Ideal for food processing, liquid, pharmaceutical, wash down, chemical industries, bakery and
bevarage machinery etc.
- Option for built-in planetary gear.
- Option for built-in PLC, RS232/485, Profibus, CANbus or industrial Ethernet
(EtherCAT, EtherNet/IP, Profinet, Modbus TCP, Sercos III and more)
