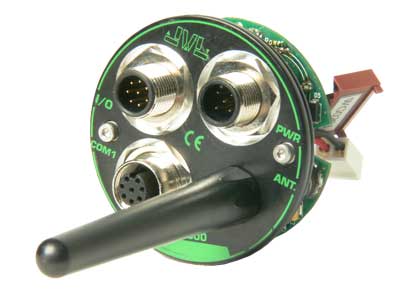

IEEE 802.15.4 wireless Expansion Module MAC00-FZ4

Wireless with M12 connectors.
The new wireless MAC00-FZ4 module is based on the established IEEE 802.15.4 standard with a special high-speed serial communications and the option to implement other protocols, like ZigBee, on top to realize true mesh networking at low transmission power.

The module makes it possible to have a fast direct point-to-point connection to the motor and to switch between a large number of motors. Used in this way, the module effectively replaces a serial cable.

Another way to use the same module is as a node in a larger network, which will require some software work, but can be used to build very large and robust mesh networks, with automatic route discovery and self-healing characteristics.

Function:
  • The solution gives full access to all functions and registers in the MAC motor
  • Baud rates of 9600, 19200, 38400 or 57600 with the MAC400 and MAC800. Fixed baudrate of 19200 with the MAC050 to MAC141
  • Wireless control of the motor.
  • Local intelligence for multipurpose control
  • 4 inputs and 4 outputs
  • Programmable via wireless control with MacTalk
  • Uses the worldwide 2.4GHz frequency band.
