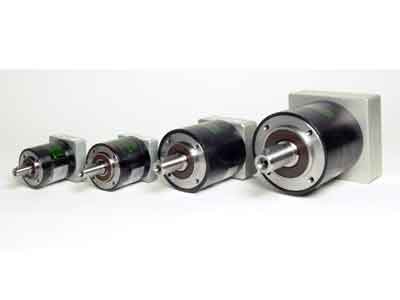

Precision Planetary Gears Type HTRG


The HTRG product range of precision planetary gears is the outcome of years of experience in the industry, and is the culmination of a decade-long dedication to performance enhancement. Comprising a wide range of low backlash planetary gearboxes, the units come in a range of precision classes up to 3’, and are available in seven gear frame sizes, with one or more reduction stages for gearing ratios from 1:3 to 1:1000. Double shaft, right angle shaft and right angle output shaft versions are also available. All this, combined with tens of motor mounting adapters held in stock, mean we can quickly respond to the most diverse application requirements of our customers. The gears can be mounted directly or by means of adaptor flanges on most of the JVL integrated servo and stepper motors as well as on the wide range of other motors from JVL. This datasheet shows the HTRG types of gear boxes which JVL normally has in stock for JVL motors and often delivered types.
If a special type of gear box, a special ratio, less backlash, angled types etc. is not shown in the datasheet and is needed, then contact JVL Industri Elektronik and we’ll find a type or a solution.
