MacTalk Nano PLC. Programming of QuickStep motors

Programming the integrated stepper motors MIS231, 232 and 234.

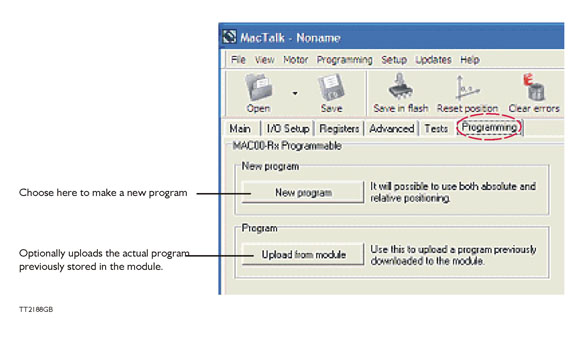

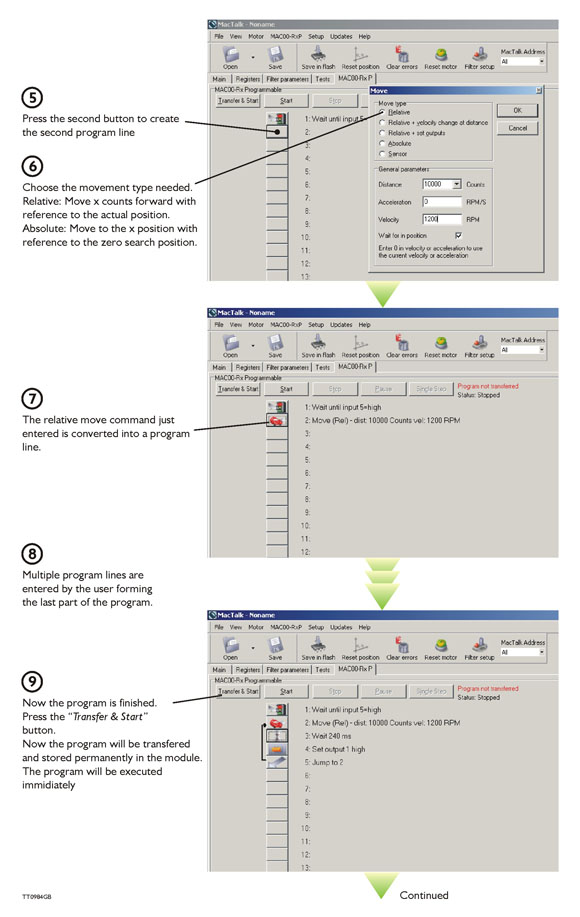

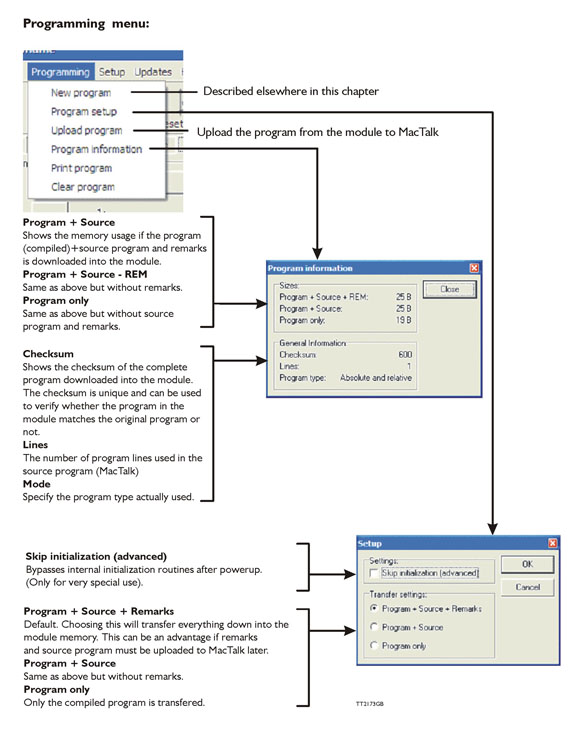

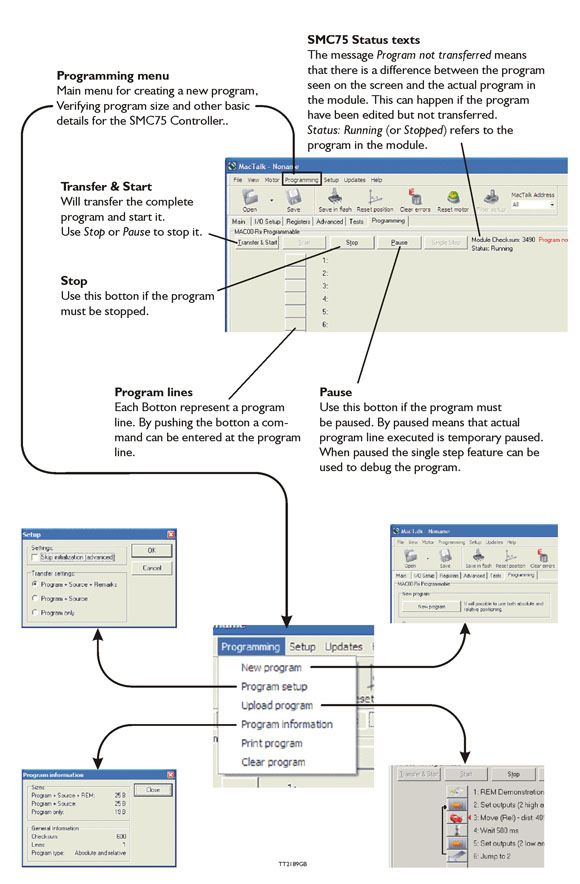

When using the SMC75 stepper motor controller almost any kind of program can be created by using a set of user friendly icons. below is shown the use interface for programming.
