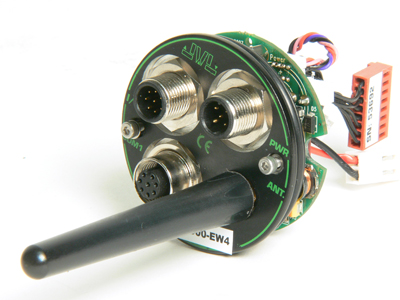

Wireless WLAN Module MAC00-EW4

Wireless with M12 connectors.

  • Gives full access to all functions and registers of the MAC motor.
  • Connection of thousands of modules possible
  • Baud rates up to 19200.
  • Remote control of the motor.
  • 5 in- and 4 outputs
  • Programmable via wireless control with MacTalk
  • M12 connectors
This module can be wireless set-up and programmed from a PC or IPC via a COM port. There are 5 in- and 4 outputs for home or limit switch sensors. Programming is done exactly as with the MAC00-Rx nanoPLC module, where advanced programs with arithmetic functions can be programmed from MacTalk. With a special mirror mode it is possible to have an input on one wireless module mirrored to an output on another wireless module without any programming. Typical application can be where a motors is moving around and therefore need power, sensor signals and communication through a slip ring. Other application could be where the control signals come from battery powered, hand-held equipment and a cable therefore can not be used.
