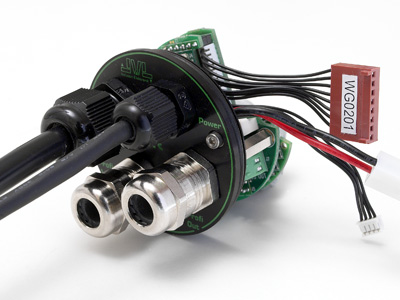

Profibus-DP Module MAC00-FP2

Profibus-DP with integrated cables
  • Control and setup through 12Mbit/s Profibus-DP
  • Logic I/O´s for High speed start/stop
  • In position indication
  • Home switch and limit input
  • Protection IP67
  • RS232 interface
  • Cable glands
Profibus DP slave module with baudrate up to 12Mbit. All registers of the MAC motor can be read and written. Isolated I/O are available for High speed start/stop, End limit and Zero search function. Address can be set up via software or with DIP switch. The module is equipped with cable glands for use in harsh environments and BUS IN and BUS OUT for easy implementation of bus systems. GSD file and program example for Siemens S7 are available for download.

MAC00-FP2 Without cable
MAC00-FP2-02 With 2m I/O and power cable
MAC00-FP2-20 With 20m I/O and power cable













DETAILED





DOWNLOAD
