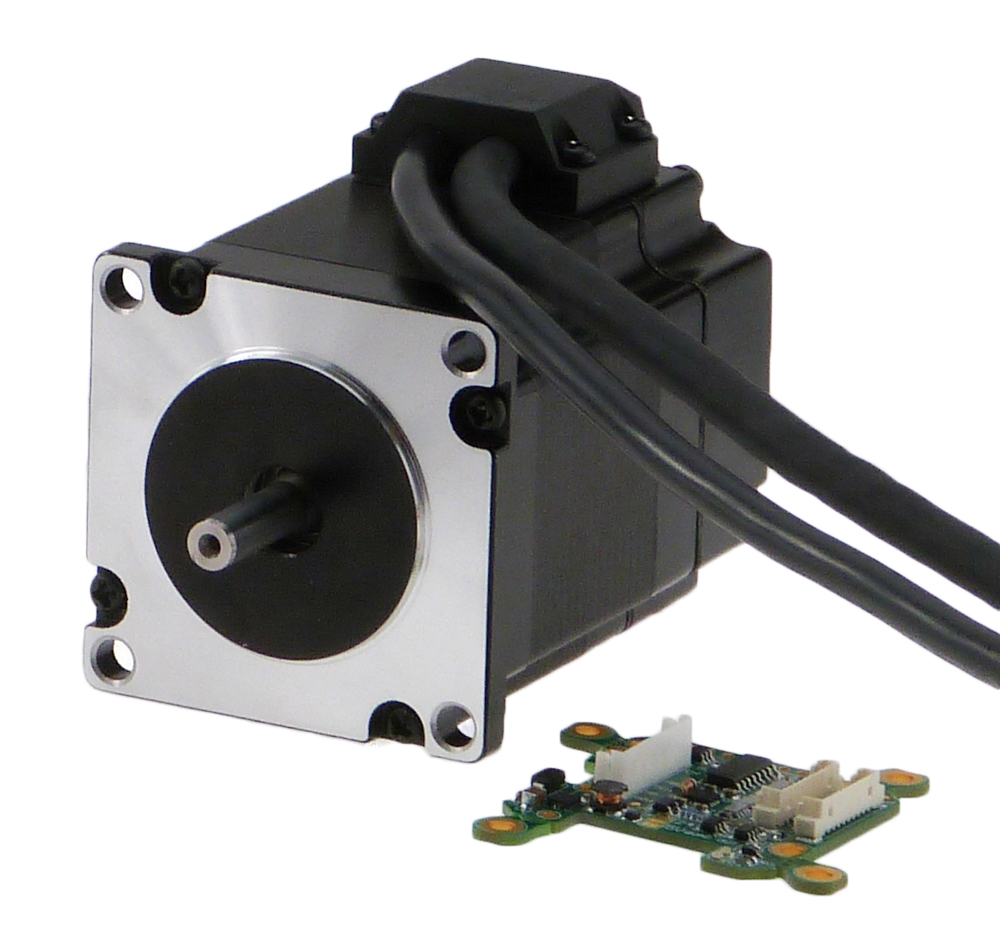

Incremental and absolute multi turn rotary magnet encoder PCB. ABZ, Sin/Cos, SSI and BISS-C interface.


General purpose encoder PCB that can be mounted on all kind of stepper or servomotor. Incremental or absolute multiturn encoder with incremental ABZ signals or SSI or BISS interface. Resolution from 128 to 65536 cnt/rev. Can be used together with JVL steppermotor controller SMC66 or SMC85 in closed-loop operation.

Features Incremental encoder:

  • A+,A-,B+-,B-,Z+,Z- signal 5V or 24V RS422
  • Resolution 128, 256, 512, 1024, 2048, 4096, 8192, 16384 cnt/rev. Factory programmed
  • Up to 16 bit Interpolated resolution 32768, 65536 cnt/rev. Factory programmed.
  • Absolute resolution of 0.02° (14 bit / 360° at up to 10000 rpm)
  • No latency results in very high precision and no delay
  • Monitored auto-gain control, optional fine-calibration for compensation of misalignment
  • Integrated RS422 transceiver up to 10 Mbit/s
  • 5V to 30V supply and signals. 24V supply and 5V output also possible
  • OTP one time program able from JVL. Optional can OEM buy programming equipment
  • Optional SIN+-/COS+- signals. Diff. current-limited sin/cos outputs (1 Vpp to 100 Ω)
  • Compatible with BISS-C profiles (BP1, BP3) and SSI
  • System monitoring via BiSS error/warning bits (loss-of-magnet)
  • Work with 4 and 6 mm magnets
  • 1 connector with Incremental ABZ signals and 1 connector with BISS/SSI
  • Optional SPI operation
  • Operation temperature -40 to 105°C
  • Optional coated or potted PCB for high resistance against dust, liquids and humidity








Features absolute multiturn encoder:
  • Same function as incremental encoder
  • Optional absolute multiturn encoder with internal or external battery up to 15 years lifetime
  • Absolute multiturn signals out on BISS,SSI or SPI
  • Resolution 4096 turn ( 12 bit)
  • Multiturn data processing for up to 32 bit (SSI MT interface)
  • Command/pin-triggered position preset for ST/MT data




Technical data
Mechanical specifications
Dimension
Made for NEMA17 (38x38mm) and NEMA23 (53x53mm) motor. See drawing
Compatible with
NEMA17/23/24/34
Compatible magnets
Ø4 and Ø6. Recommended distance magnet to chip 0,5 to 1,5mm
Connections PCB
2 pcs 10Pin Molex connector CI14410M1V00
Counterpart: Crimp 50079-8000 x 8 , Housing 10pin 51021-1000 x 1
Connections Motor

2 pcs M12 for motor and encoder. Optional 1pcs M12 Hybrid.
Weight 38x38mm Nema17
Xx / yy ( with battery)
Weigth 53x53mm. Nema23
Xx / yy ( with battery)


Electrical specifications
Resolution singleturn
Up to 65536 cpr (16bit)
128, 256, 512, 1024, 2048, 4096, 8192, 16384, 32768, 65536
Resolution singleturn absolute
Up to 16384 (14 bit). 0.02°
Resolution multiturn absolute
4096 turns
Max speed
10000 RPM.
Accuracy
+-0,02° @16 bit resolution @25°C
Incremental interface
Max 10Mhx. A+,A-,B+,B-,Z+,Z-. RS422 5 to 24V
SSI interface
Clock rate <4Mhz RS422 5V
BISS C interface
Clock rate <10Mhz RS422 5V
SIN/COS
Resolution: Number of pulses 1024 and 2048 ??
Signals: Sin+,Sin-,COS+,COS- . 1Vss
Broad bandwidth of 500 KHz at full signal quality
Output code
Grey and binary ????
Power supply (VIN)
4,85V to 30VDC. Internal low drop switch regulator for 5V input
Supply current
<100mA @5VDC .
Protection
Shortcircuit of all RS422 outputs. Negative or positive voltage spikes on CVI.
Lifetime battery
+10 years @ 8 hours a day , 200 days a year. Acceleration max 48000 rad/s2, RPM max 2000 RPM.
LED
Green: 5V ok. Red: Encoder Error
EMC
EN61000-4-2
Special inputs
Input: Change counting direction and Zero setting/Preset position.


Environmental specifications
Shock
100G 6mS
Vibrations
10g, 5-2000Hz
Protection PCB
IP00. Options for coating or potting
Protection motor with PCB
Up to IP67
Operation temperature
-40 to 100°C

Storage
-40 to 100°C


Accessories
WG0807
10 pin molex connector 80mm wire to female 8 pin M12
WG0809
5 pin motor connector 80mm wire to male 5 pin M12
WGxxxxx
BISS Programming cable for own setup of PCB (Only OEM customer)
WGxxxx
Software for own programming





Connections
J5 Motor Connector

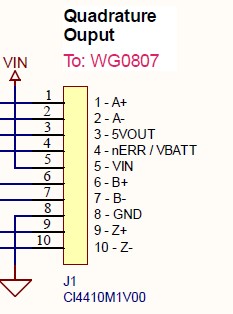

J1 Quadrature J2 BISS/SSI/ COSSIBN
1
MA+
A+
Zero set (SIN-)
2
MA-
A-
CNTDIR (COS-)
3
MB+
5VOUT
SIN+
4
MB-
nERR/VBatt
COS+
5

VIN 5-30VDC
VIN
6
GND
B+
BISS/SSI DO+
7

B-
BISS/SSI/DO-
8

GND
GND
9

Z+
BISS/SSI/CLK+
10

Z-
BISS/SSI/CLK-
