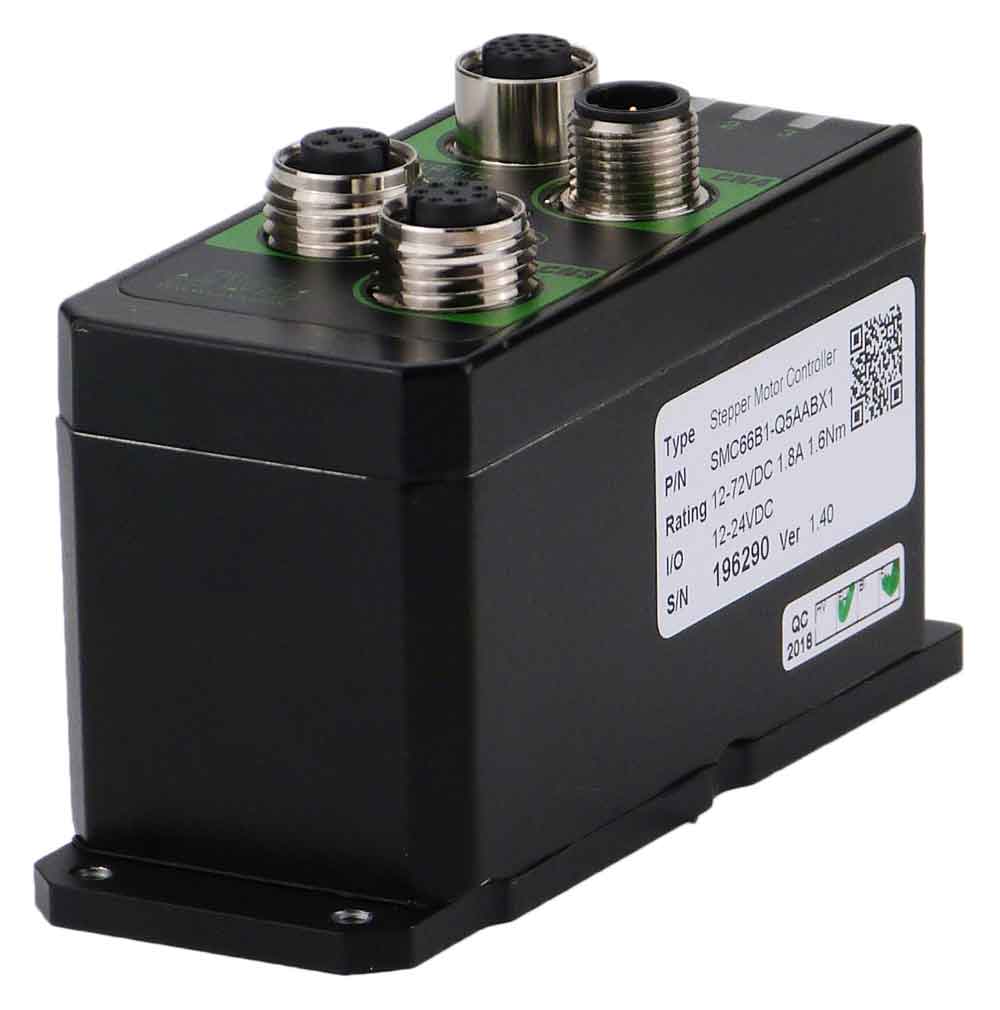

Stepper Motor Controller SMC66 with Housing


Stepper motor controller 0-6Amp RMS, PLC build in with 8IOA and RS422. Optional Profinet, EtherCAT, EthernetIP, Powerlink, MOSBUS TCP, Bluetooth, WLAN, Zigbii, SSI or CANopen.

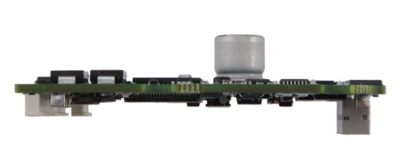

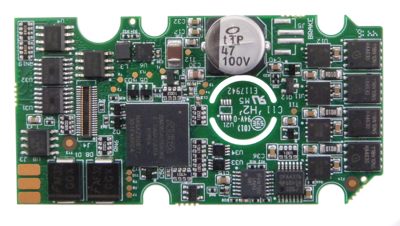

A Stepper Motor Controller with RS485 and CANbus serial interface, also including 6 different Industrial Ethernet protocols. 8IO can be configured to input, output or analog input. Can be controlled via nanoPLC and MacTalk. The very compact, 33.6x65.3mm, PCB contains everything needed to solve a modern control task as stand-alone or controlled from a PLC or PC. MODBUS RTU and CANopen gives the possibility for easy connection to a PLC. For PC or IPC an ActiveX/OCX driver is available so that interface to LABview, Excel, VB or other Windows-programs is simple.
  • NanoPLC with 8IO in 24V
  • RS485 up to 962kbit
  • CANOpen DSP402
  • MODBUS RTU
  • Resolution is 409.600 step/rev.
  • Velocity precission 0,01 RPM
  • Pulse/Direction mode
  • Supply 12-80VDC
  • Motor current 0-6 Amp RMS
  • Dual supply for safe emergency stop
  • Active X / OCX driver available

Optional:


A Stepper Motor Controller with RS485 and CANbus serial interface
A Stepper Motor Controller with RS485 and CANbus serial interface
New SMC66 with Ethernet, etc.
MIS23 2. Generation
Stepper Motor Controller SMC85 with Housing
Industrial Ethernet protocols supported by SMC66


Product will be ready Q1 2018
Read more about a full integrated solution here.


Partnumber
Current Amp RMS
Motor, Encoder & IO connector*
Application
PLC 8IA
RS485/
SSI
Bus communication
SMC66Q1-Q5AABX1
0-1.5
M12, 6 pcs.
PLC,Pulse/dir
Yes Yes
RS485 in / out
SMC66B1-EPAABX1
0-6
M12, 6 pcs.
Ethernet
Yes Yes
Profinet in / out
SMC66B1-Q5AABX1
0-6
M12, 6 pcs.
PLC,Pulse/dir
Yes
Yes
RS485 in / out
SMC66B1-Q9AABX1
0-6
M12, 6 pcs.
SSI
Yes
Yes
RS485 in
SMC66B1-P6AABX1
0-6
M12, 6 pcs.
CAN
Yes
Yes
CAN in/ out
SMC66B1-EIAABX1
0-6
M12, 6 pcs.
Ethernet
Yes
Yes
EtherNet/IP in/out
SMC66B1-EPAABX1
0-6
M12, 6 pcs.
Ethernet
Yes
Yes
Profinet in/out
SMC66B1-ECAABX1
0-6
M12, 6 pcs.
Ethernet
Yes
Yes
EtherCAT in/out
SMC66B1-EMAABX1
0-6
M12, 6 pcs.
Ethernet
Yes
Yes
MODBUS TCP in/out
SMC66B1-ELAABX1
0-6
M12, 6 pcs.
Ethernet
Yes
Yes
Powerlink in/out
SMC66B1-FBAABX1
0-6
M12, 6 pcs.
Wireless
Yes
Yes
RS485 in, Bluetooth
SMC66B1-EWAABX1
0-6
M12, 6 pcs.
Wireless
Yes
Yes
RS485 in, WLAN
SMC66B1-EyAABX1
0-6
M12, 6 pcs.
Ethernet
Yes
Yes
Ethernet in, SSI
y: 2 = Ethernet, 3 = Ethernet/IP, 4 = Powerlink, 5 = MODBUS TCP, 6 = Profinet, 7 = SERCOSIII (1 pcs Ethernet in, and 1 pcs SSI/IO5/IO6 connector).
BX1 for 4 pcs. M12 radial motor connectors.
*without STO connector



The box can be mounted on a buttom plate or on DIN rail. Click here to read more about MIS23x integrated stepper motor solutions.

Motor connection M12 or M16
M12 M12 Angle cable type, WI1000-M12F5VxxN
M16 M16 Motor cable type WP2101 (1m), WP2105 (5m), WP2120 (20m)
Motor phase A+
Pin 1
Brown
Pin 1
Black "1"
Motor phase A-
Pin 2
White
Pin 2
Black "2"
Motor phase B+
Pin 3
Blue
Pin 5
Black "3"
Motor phase B-
Pin 4
Black
Pin 4
Black "4"
Ground/Housing
Pin 5
Grey
GND
Yellow/green
xx: 05 mean meter. 20 mean 20 meter. For models with M12 motor connector use loose connector WI1008-M12M5SS1 or WI1008-M12M5VG1.

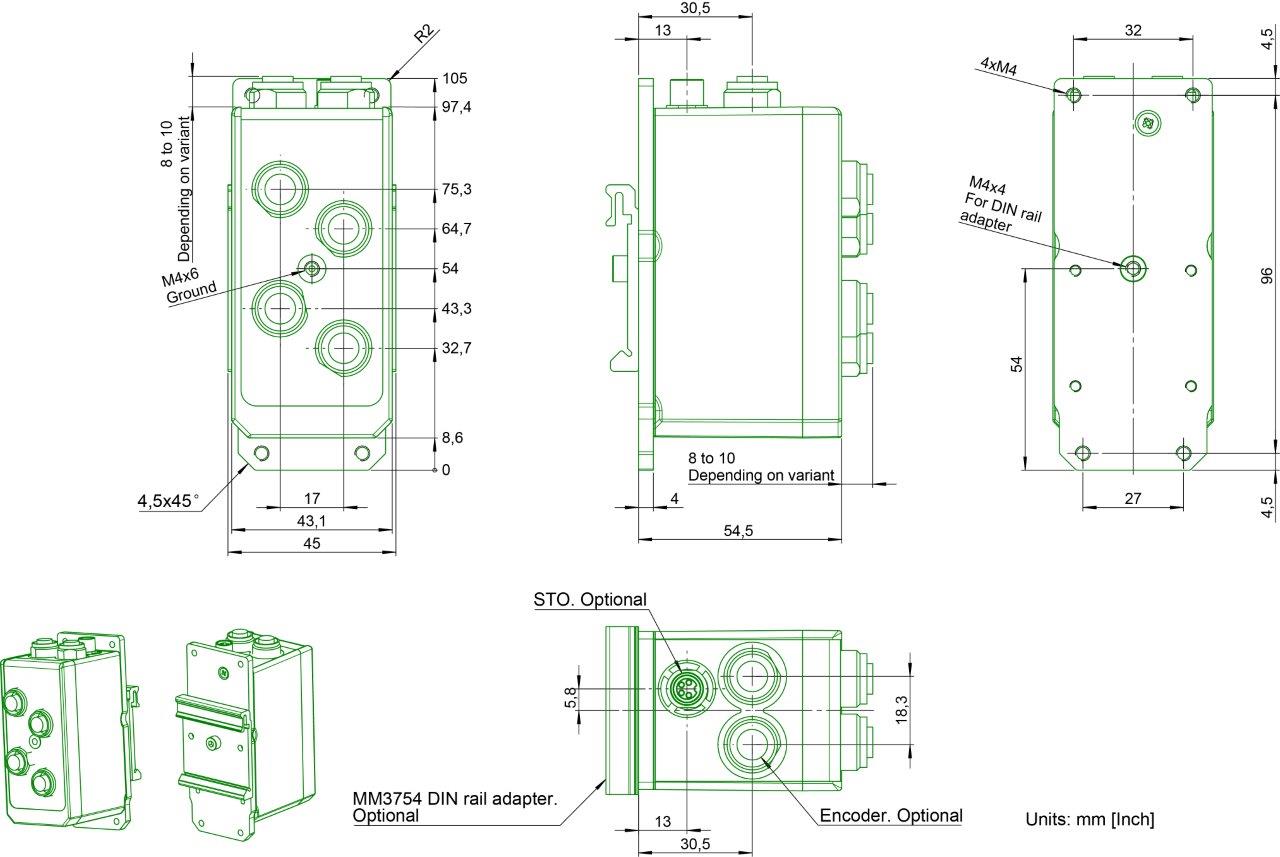

SMC66 with Housing Dimensions


(download)



DETAILED




DOWNLOAD
  • DATASHEET
  • USER MANUAL
