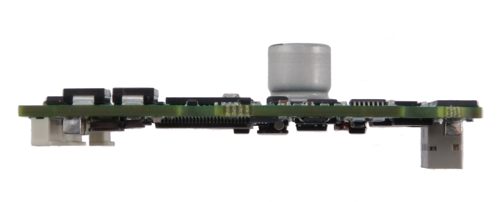

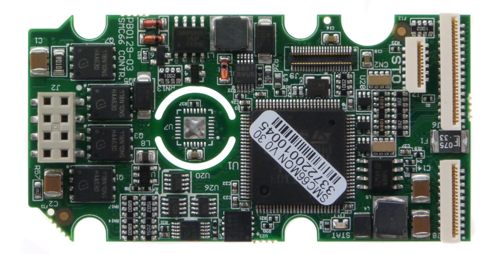

Stepper Motor Controller SMC66 PCB version


Stepper motor controller 0-6Amp RMS, PLC build in with 8IOA and RS422. Optional Profinet, EtherCAT, EthernetIP, Powerlink, MOSBUS TCP, Bluetooth, WLAN, Zigbii, SSI or CANopen.

A Stepper Motor Controller with RS485 and CANbus serial interface, also including 6 different Industrial Ethernet protocols. 8IO can be configured to input, output or analog input. Can be controlled via nanoPLC and MacTalk. The very compact, 33.6x65.3mm, PCB contains everything needed to solve a modern control task as stand-alone or controlled from a PLC or PC. MODBUS RTU and CANopen gives the possibility for easy connection to a PLC. For PC or IPC an ActiveX/OCX driver is available so that interface to LABview, Excel, VB or other Windows-programs is simple.
  • NanoPLC with 8IO in 24V
  • RS485 up to 962kbit
  • CANOpen DSP402
  • MODBUS RTU
  • Resolution is 409.600 step/rev.
  • Velocity precission 0,01 RPM
  • Pulse/Direction mode
  • Supply 12-80VDC
  • Motor current 0-6 Amp RMS
  • Dual supply for safe emergency stop
  • Active X / OCX driver available






A Stepper Motor Controller with RS485 and CANbus serial interface
A Stepper Motor Controller with RS485 and CANbus serial interface

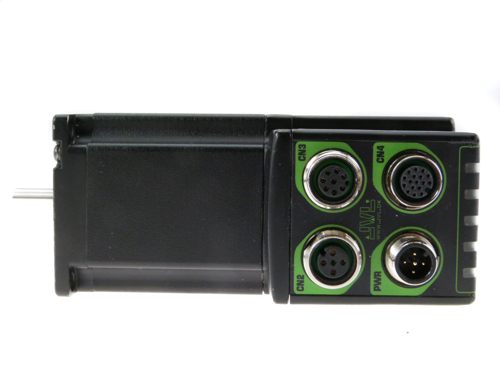

New MIS23 with Ethernet, etc.
MIS23 2. Generation
Stepper Motor Controller SMC85 PCB version


Read more about a full integrated solution here.


Partnumber Current
Amp
RMS
Application M12 connectors Bus communication Photo
SMC66B1-AAAABX
0-6Amp
PLC,Pulse/dir for own housing
and connection
No
RS485 in / out
Coming soon
SMC66B1-AAH2BX
0-6Amp
PLC,Pulse/dir with closed-loop
for own housing and connection
No
RS485 in / out
Coming soon
SMC66B1-ACAABX
0-6Amp
PLC and CANopen for own
housing and connection
No
CAN in/ out
Coming soon
SMC66B1-Q5AABX
0-6Amp
PLC,Pulse/dir for own housing
but with M12 connectorboard
Yes, 4 pcs.
RS485 in / out
Coming soon
SMC66B1-ECAABX *
0-6Amp
Ethernet and PLC for own connectorboard but with M12 connectorboard
Yes, 4 pcs.
EtherCAT in/out
Coming soon
RS485 and SSI for absolute multiturn encoder are available on all models.
* Profinet, Ethernet IP, Ethercat, Powerlink, MODBUS TCP, also available



DETAILED




DOWNLOAD
  • DATASHEET
  • USER MANUAL
