Rockwell Encompass Partner


Integrated Servo Motors with EtherNet/IP
Order no.
Power
(Watt)
Torque
RMS
(Nm)
Protec-
tion
Brake
Flange: 57x57mm, Shaft: ø6.35mm
46
92
134
134
0.11
0.22
0.32
0.48
Standard
IP42
Optional
External

134
134
0.32
0.48
Water
Proof
IP67
Optional
External
High Torque Stepper Motors by danish JVL
Flange: 80x80mm, Shaft: ø10/14mm
134
0.32
Stainless
Steel
IP67
No

Flange: 60x60mm, Shaft: ø14mm
400
1.3
Splash
Proof
IP55
No
Steppermotor integrated is unique & cost saving
400
1.3
Splash
Proof
IP55
Yes
Built-in

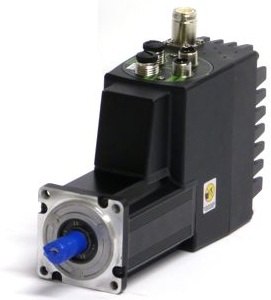

Brushless servo motor from JVL MAC series

Integrated Stepper Motors with EtherNet/IP
Order no.
Max Current (A)
Torque Holding (Nm)
Protec-
tion


Flange: 57x57mm Shaft: ø6.35/10mm


1.1
1.6
2.5
IP55
SMC66





1.6
2.3

IP55
SMC66

Flange: 86x86mm ø9.53/14mm
9
9
9
3.0
6.1
9.0
Standard
IP42/65
SMC85
MIS / Quickstep integrated Stepper Motors from JVL.
Flange: 110x110mm ø19mm
9
9
10.0
25.0
Standard
IP42/65
SMC85
Quickstep by JVL is the world´s most compact stepper motors with the highest microstepping resolution.
JVL has proudly been appointed Rockwell Encompass Partner in Europe. Rockwell is world leader in automation with €5,5 billion in yearly sales.

JVL has been chosen as partner for integrated stepper and servo motors. The partnership includes certain products from JVL’s product portfolio that all support EtherNet/IP.

Products include JVL Integrated Servo Motors with EtherNet/IP: MAC050 to MAC402 (50-400W DC voltage) and JVL’s 2nd generation integrated stepper motors MIS17, MIS23, MIS34 and MIS43 (Size NEMA17 to NEMA43).

For inquiries please use the contact us and include Rockwell in the header.

Read more about product information provided by Emcompass parter JVL Industri Elektronik A/S:
http://www.ab.com/db/encompass/bps_ext.comp_list?x_co_id=14759

To know more about The Rockwell Encompass Partnership program, please read more here:
http://www.rockwellautomation.com/global/sales-partners/complementary-products/overview.page


The Rockwell Automation TechED EMEA is a 3-day event designed for end users, system integrators, distributors, machine builders and Rockwell Automation technical and sales personnel. JVL will show the new ServoStep series of Integrated stepper motors and integrated DC Servomotors. All with embedded Ehernet/IP switch.

Event info:


JVL's latest News
Updated: 27/11-2017
NEWS

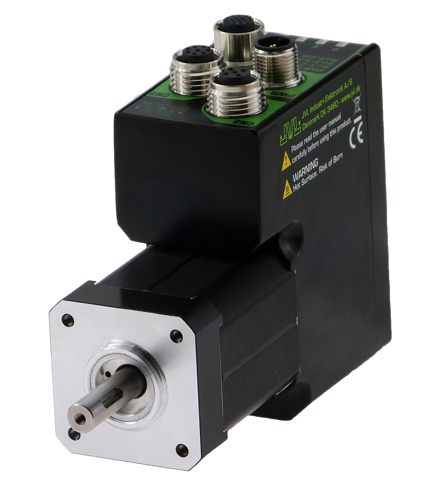

New NEMA17 Integrated ServoStep Motor (MIS17xQ/S)
Visit JVL at Hannover Fair in April 2018

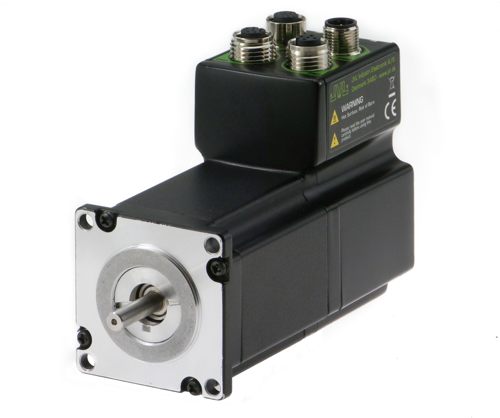

New NEMA23 Integrated Stepper Motor (MIS23xQ/R/S/T)
