CANopen Module MAC00-FC41


CAN/CANopen with M12 connectors
  • Control and setup
  • Logic I/O for high speed start/stop
  • Position torque, and velocity control
  • I/O can be used for end-of-travel limits and high speed start/stop
  • Hardware and software adjustment of baud rate and address
  • Galvanically isolated I/O and network connections
  • CANopen DS301
  • CANopen DSP402

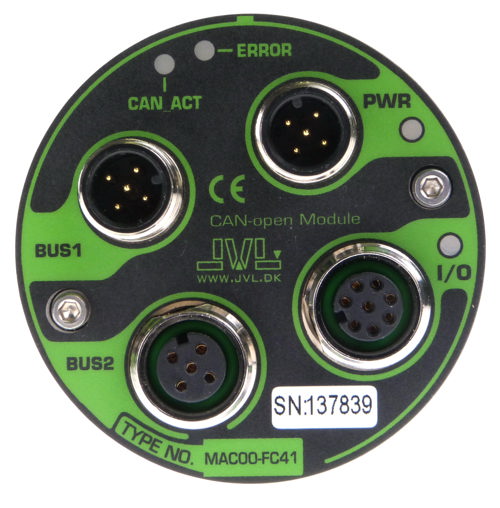

CAN Open slave module with baudrate up to 1Mbit. CANopen DS301 V3.0 and DSP 402 V2.0. All registers of the MAC motor can be read and written.The module has M12 connectors for use in harsh environments and BUS IN and BUS OUT for easy implementation of bus systems. M12 connector module has 4I/O eg. 2 inputs, 1 outputs and O+. On special request the module is available with cable glands with 6 inputs and 2 outputs.







Compatible with module MAC00-FC4 but with new functions:
  • 4 pcs. LED for Power, CAN activity and CAN error.
  • Generation 2 solid connector to basic motor for easier mounting. No wires.
  • New CAN transceiver opto-isolated according to ISO11898-2.
  • New RS232 ESD protected up to 15Kv according to IEC 61000-4-2.
  • Fully software and hardware compatible with FC4.
  • New software features.
