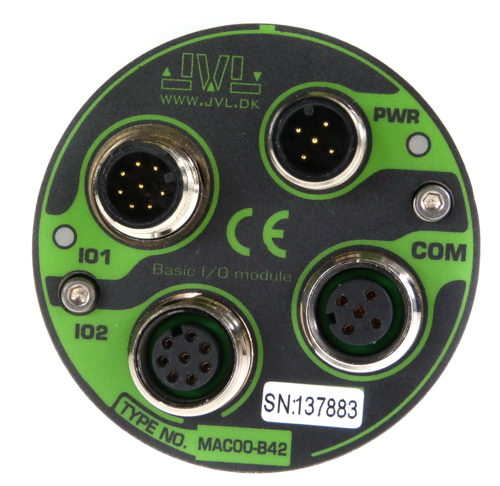

IO Module MAC00-B42

Pin-out as the MAC00-R4 and with programming possibility in MAC400-4500.

The module offers:
  • Pin-out as MAC00-R4.
  • 8 DI (I1-8) and 4 DO (O1-4).
  • 24VDC digital inputs.
  • Short circuit rated outputs.
  • Generation 2 connector for easier mounting.
  • LED in the rear plate foil showing state of 24V power and O+ (I/O supply).
  • I/O’s are galvanic isolated.
  • RS485 channel from 9.600 to 230.000bit/sec.
    Doesn't work for MAC800, 1000, 1200
  • RS485 tolerant for overvoltages up to 60V.
  • RS232 tolerant for up to 15kV ESD (extreme static electricity … Same for RS485 above).
  • 4 pcs. M12 connectors.
  • Indication in MacTalk showing if I/O supply (O+) is connected or not. Also indication of possible short circuit/overload of the user outputs.




Be adviced, the B42 module is non-programmable but can be used for MAC400-4500 as the R4.
For MAC050-141 the programmable module should be used - please see the R4 module here.

Please notice that a firmware ( >2.10 ) and a version of MacTalk ( >1.60.041 ) is needed in order to support this module.
