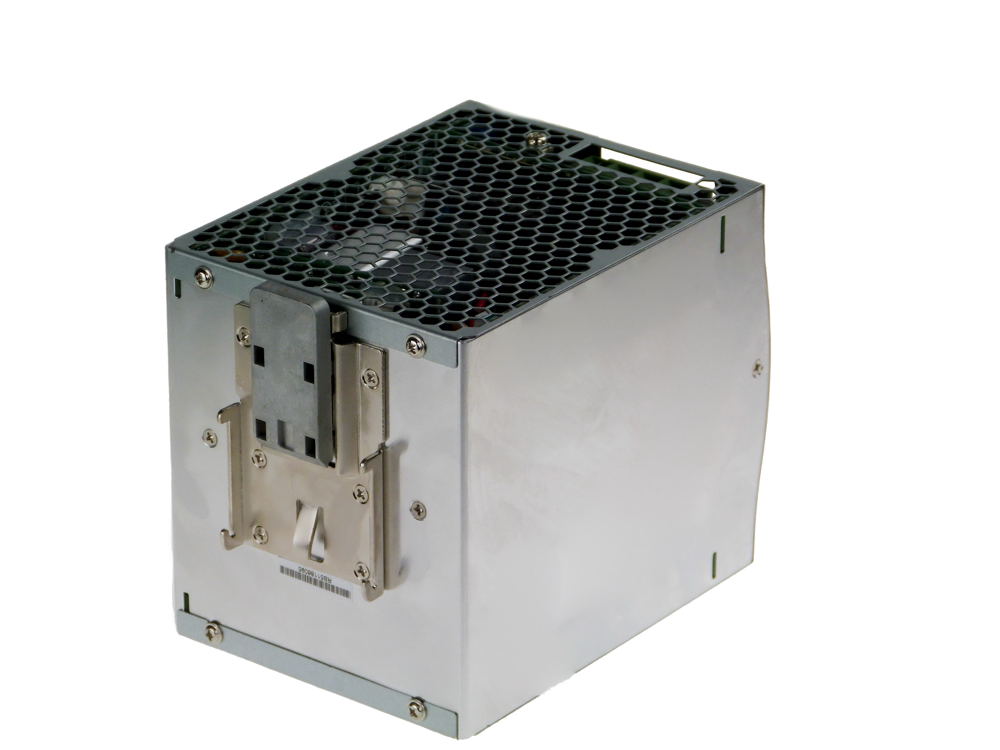

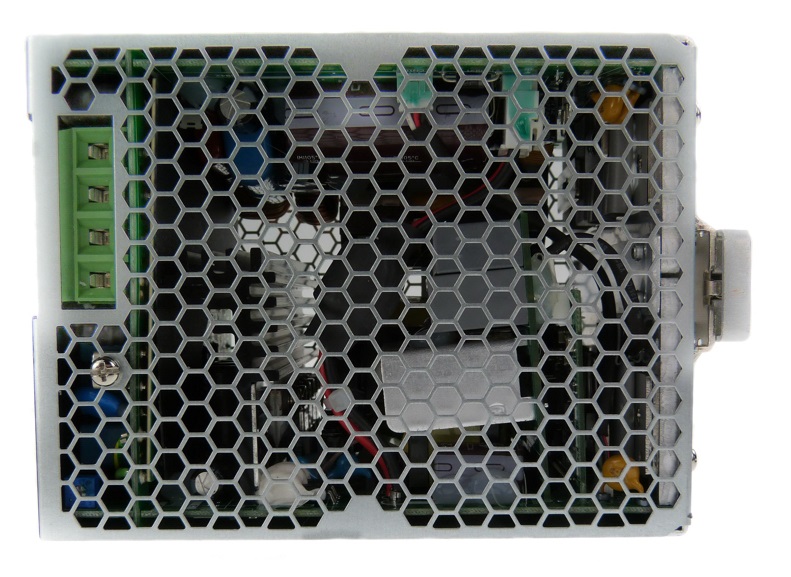

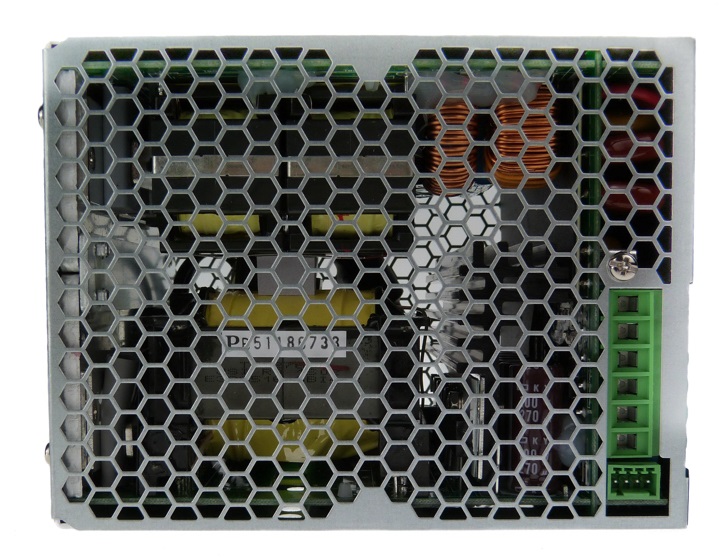

Switch Mode Power Supplies PSU80-1000-10


High Quality Power Supplies
A 1000W switchmode power supply that are particularly well suited for supplying the range of JVL integrated servo and steppermotor or other driver/controller with supply voltage in the range 70-90VDC. Ultra compact with dimension 110x125x150mm and only 2,5kg makes it the most compact 80V/1000W power supply in the industry. Can be used together with JVL integrated stepper motor MIS340-MIS343 and stepper driver SMD41 series.
  • Three-Phase 340 ~550VAC wide range input (Dual phase operation possible)
  • Built-in active PFC function compliance to EN61000-3-2
  • Width only 110mm
  • High efficiency 94.5% and low power dissipation.
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • Can be installed on DIN rail
  • UL508(industrial control equipment) approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • Current sharing up to 3840W (3+1)
  • Built-in DC OK relay contact
  • 100% full load burn-in test
